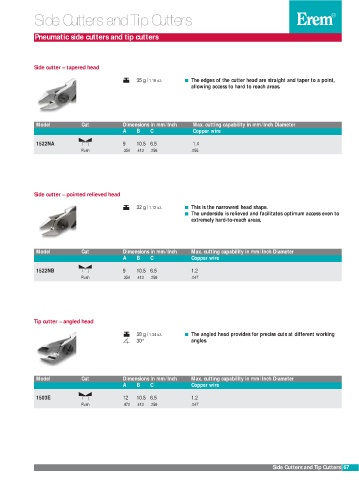

Side Cutters and Tip Cutters

Pneumatic side cutters and tip cutters

Side cutter – tapered head
35 g / 1.16 oz. The edges of the cutter head are straight and taper to a point,
allowing access to hard to reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C Copper wire
1522NA 9 10.5 6.5 1.4
Flush .354 .413 .256 .055

Side cutter – pointed relieved head
32 g / 1.12 oz. This is the narrowest head shape.
The underside is relieved and facilitates optimum access even to
extremely hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C Copper wire

1522NB 9 10.5 6.5 1.2
Flush .354 .413 .256 .047

Tip cutter – angled head

38 g / 1.34 oz. The angled head provides for precise cuts at different working
30° angles.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C Copper wire

1503E 12 10.5 6.5 1.2
Flush .472 .413 .256 .047

Side Cutters and Tip Cutters 67
