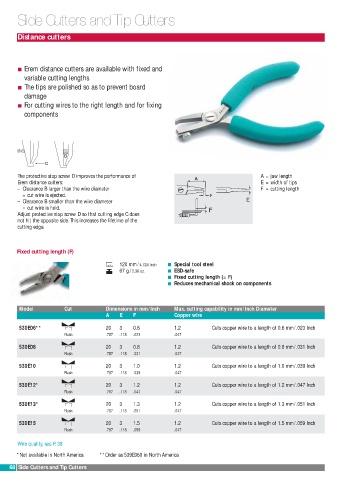

Page 67 - EREM katalógus

Side Cutters and Tip Cutters

Distance cutters

Erem distance cutters are available with fixed and
variable cutting lengths
The tips are polished so as to prevent board
damage
For cutting wires to the right length and for fixing
components

D
B
C
The protective stop screw D improves the performance of A = jaw length
Erem distance cutters: E = width of tips
– Clearance B larger than the wire diameter F = cutting length
= cut wire is ejected.
– Clearance B smaller than the wire diameter E
= cut wire is held.
Adjust protective stop screw D so that cutting edge C does
not hit the opposite side. This increases the lifetime of the
cutting edge.

Fixed cutting length (F)
120 mm/ 4.724 Inch Special tool steel
67 g / 2.36 oz. ESD-safe
Fixed cutting length (= F)
Reduces mechanical shock on components

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A E F Copper wire
530E06** 20 3 0.6 1.2 Cuts copper wire to a length of 0.6 mm/.023 Inch
Flush .787 .118 .023 .047
530E08 20 3 0.8 1.2 Cuts copper wire to a length of 0.8 mm/.031 Inch
Flush .787 .118 .031 .047
530E10 20 3 1.0 1.2 Cuts copper wire to a length of 1.0 mm/.039 Inch
Flush .787 .118 .039 .047
530E12* 20 3 1.2 1.2 Cuts copper wire to a length of 1.2 mm/.047 Inch
Flush .787 .118 .047 .047
530E13* 20 3 1.3 1.2 Cuts copper wire to a length of 1.3 mm/.051 Inch
Flush .787 .118 .051 .047

530E15 20 3 1.5 1.2 Cuts copper wire to a length of 1.5 mm/.059 Inch
Flush .787 .118 .059 .047

Wire quality, see P. 38

*Not available in North America **Order as 539E060 in North America
