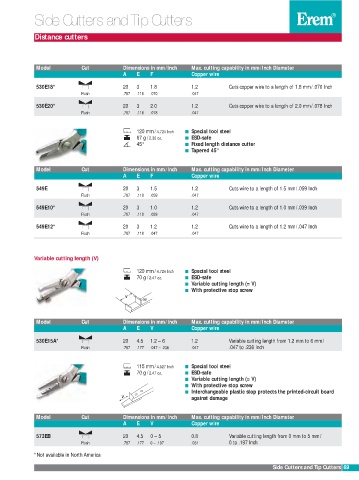

Page 68 - EREM katalógus

Side Cutters and Tip Cutters

Distance cutters

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A E F Copper wire

530E18* 20 3 1.8 1.2 Cuts copper wire to a length of 1.8 mm/.070 Inch
Flush .787 .118 .070 .047
530E20* 20 3 2.0 1.2 Cuts copper wire to a length of 2.0 mm/.078 Inch
Flush .787 .118 .078 .047

120 mm/ 4.724 Inch Special tool steel
67 g / 2.36 oz. ESD-safe
45° Fixed length distance cutter
Tapered 45°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A E F Copper wire
549E 20 3 1.5 1.2 Cuts wire to a length of 1.5 mm/.059 Inch
Flush .787 .118 .059 .047
549E10* 20 3 1.0 1.2 Cuts wire to a length of 1.0 mm/.039 Inch
Flush .787 .118 .039 .047
549E12* 20 3 1.2 1.2 Cuts wire to a length of 1.2 mm/.047 Inch
Flush .787 .118 .047 .047

Variable cutting length (V)

120 mm/ 4.724 Inch Special tool steel
70 g / 2.47 oz. ESD-safe
Variable cutting length (= V)
With protective stop screw

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A E V Copper wire

530E15A* 20 4.5 1.2 – 6 1.2 Variable cutting length from 1.2 mm to 6 mm/
Flush .787 .177 .047 – .236 .047 .047 to .236 Inch

115 mm/ 4.527 Inch Special tool steel
70 g / 2.47 oz. ESD-safe
Variable cutting length (= V)
With protective stop screw
Interchangeable plastic stop protects the printed-circuit board
against damage

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A E V Copper wire

573EB 20 4.5 0 – 5 0.8 Variable cutting length from 0 mm to 5 mm/
Flush .787 .177 0 – .197 .031 0 to .197 Inch

*Not available in North America
Side Cutters and Tip Cutters 69
