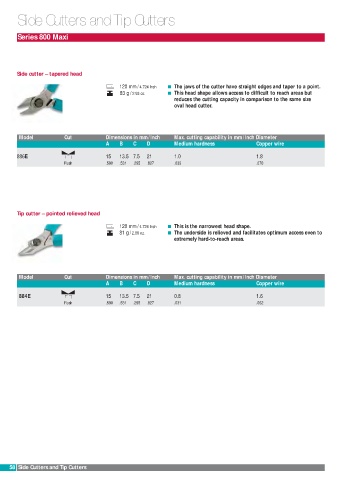

Side Cutters and Tip Cutters

Series 800 Maxi

Side cutter – tapered head

120 mm/ 4.724 Inch The jaws of the cutter have straight edges and taper to a point.
83 g / 2.93 oz. This head shape allows access to difficult to reach areas but
reduces the cutting capacity in comparison to the same size
oval head cutter.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

886E 15 13.5 7.5 21 1.0 1.8
Flush .590 .531 .295 .827 .039 .070

Tip cutter – pointed relieved head
120 mm/ 4.724 Inch This is the narrowest head shape.
81 g / 2.86 oz. The underside is relieved and facilitates optimum access even to
extremely hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

884E 15 13.5 7.5 21 0.8 1.6
Flush .590 .531 .295 .827 .031 .062

58 Side Cutters and Tip Cutters
