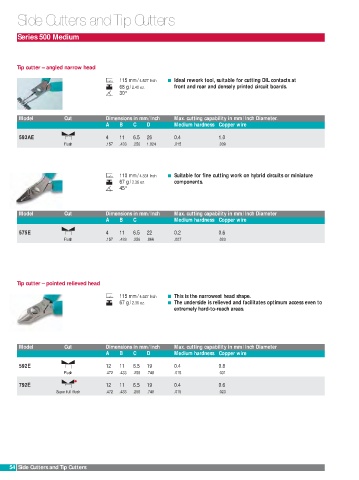

Side Cutters and Tip Cutters

Series 500 Medium

Tip cutter – angled narrow head
115 mm/ 4.527 Inch Ideal rework tool, suitable for cutting DIL contacts at
68 g / 2.40 oz. front and rear and densely printed circuit boards.
30°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter.
A B C D Medium hardness Copper wire

593AE 4 11 6.5 26 0.4 1.0
Flush .157 .433 .256 1.024 .015 .039

110 mm/ 4.331 Inch Suitable for fine cutting work on hybrid circuits or miniature
67 g / 2.36 oz. components.
45°

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C Medium hardness Copper wire

575E 4 11 6.5 22 0.2 0.6
Flush .157 .433 .256 .866 .007 .023

Tip cutter – pointed relieved head

115 mm/ 4.527 Inch This is the narrowest head shape.
67 g / 2.36 oz. The underside is relieved and facilitates optimum access even to
extremely hard-to-reach areas.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Medium hardness Copper wire

592E 12 11 6.5 19 0.4 0.8
Flush .472 .433 .256 .748 .015 .031
792E 12 11 6.5 19 0.4 0.6
Super full flush .472 .433 .256 .748 .015 .023

54 Side Cutters and Tip Cutters
