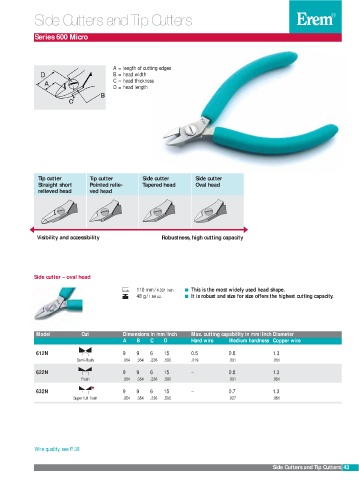

Side Cutters and Tip Cutters

Series 600 Micro

A = length of cutting edges
D B = head width
C = head thickness
D = head length

Tip cutter Tip cutter Side cutter Side cutter
Straight short Pointed relie- Tapered head Oval head
relieved head ved head

Visibility and accessibility Robustness, high cutting capacity

Side cutter – oval head

110 mm/ 4.331 Inch This is the most widely used head shape.
48 g/ 1.69 oz. It is robust and size for size offers the highest cutting capacity.

Model Cut Dimensions in mm/Inch Max. cutting capability in mm/Inch Diameter
A B C D Hard wire Medium hardness Copper wire
612N 9 9 6 15 0.5 0.8 1.3
Semi-flush .354 .354 .236 .590 .019 .031 .051
622N 9 9 6 15 – 0.8 1.3
Flush .354 .354 .236 .590 .031 .051
632N 9 9 6 15 – 0.7 1.3
Super full flush .354 .354 .236 .590 .027 .051

Wire quality, see P. 38

Side Cutters and Tip Cutters 43
