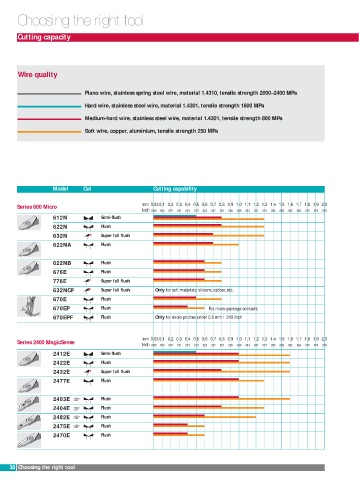

Choosing the right tool

Cutting capacity

Wire quality

Piano wire, stainless spring steel wire, material 1.4310, tensile strength 2000–2400 MPa
Hard wire, stainless steel wire, material 1.4301, tensile strength 1800 MPa

Medium-hard wire, stainless steel wire, material 1.4301, tensile strength 800 MPa

Soft wire, copper, aluminium, tensile strength 250 MPa

Model Cut Cutting capability

Series 600 Micro mm 0.03 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
Inch .0001 .003 .007 .011 .015 .019 .023 .027 .031 .035 .039 .043 .047 .051 .055 .059 .062 .066 .070 .074 .078
612N Semi-flush
622N Flush
632N Super full flush
622NA Flush

622NB Flush
676E Flush
776E Super full flush
632NCF Super full flush Only for soft materials: silicone, rubber, etc.
670E Flush
670EP Flush For micro-package contacts
670EPF Flush Only for micro pitches under 0.5 mm / .019 Inch

mm 0.03 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
Series 2400 MagicSense
Inch .0001 .003 .007 .011 .015 .019 .023 .027 .031 .035 .039 .043 .047 .051 .055 .059 .062 .066 .070 .074 .078
2412E Semi-flush
2422E Flush
2432E Super full flush
2477E Flush

2403E 30° Flush
2404E 30° Flush
2482E 45° Flush
2475E 45° Flush
2470E Flush

38 Choosing the right tool
