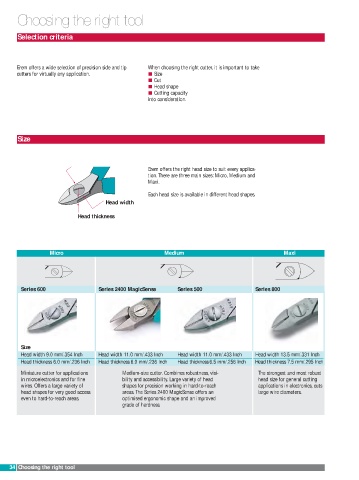

Choosing the right tool

Selection criteria

Erem offers a wide selection of precision side and tip When choosing the right cutter, it is important to take
cutters for virtually any application. Size
Cut
Head shape
Cutting capacity
into consideration.

Size

Erem offers the right head size to suit every applica-
tion. There are three main sizes: Micro, Medium and
Maxi.

Each head size is available in different head shapes.
Head width

Head thickness

Micro Medium Maxi

Series 600 Series 2400 MagicSense Series 500 Series 800

Size
Head width 9.0 mm/.354 Inch Head width 11.0 mm/.433 Inch Head width 11.0 mm/.433 Inch Head width 13.5 mm/.331 Inch
Head thickness 6.0 mm/.236 Inch Head thickness 6.0 mm/.236 Inch Head thickness 6.5 mm/.256 Inch Head thickness 7.5 mm/.295 Inch

Miniature cutter for applications Medium-size cutter. Combines robustness, visi- The strongest and most robust
in microelectronics and for fine bility and accessibility. Large variety of head head size for general cutting
wires. Offers a large variety of shapes for precision working in hard-to-reach applications in electronics, cuts
head shapes for very good access areas. The Series 2400 MagicSense offers an large wire diameters.
even to hard-to-reach areas. optimised ergonomic shape and an improved
grade of hardness.

34 Choosing the right tool
