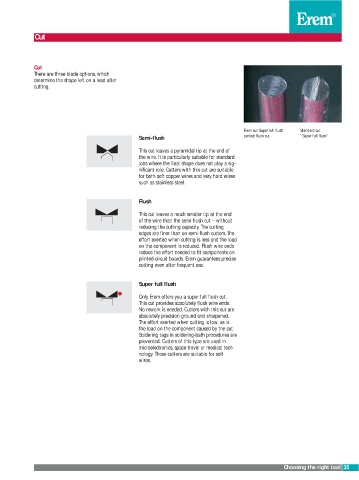

Page 34 - EREM katalógus

Cut

Cut
There are three blade options, which
determine the shape left on a lead after
cutting.

Erem cut Super full flush: Standard cut
Semi-flush perfect flush cut "Super full flush“

This cut leaves a pyramidal tip at the end of
the wire. It is particularly suitable for standard
jobs where the final shape does not play a sig-
nificant role. Cutters with this cut are suitable
for both soft copper wires and very hard wires
such as stainless steel.

Flush

This cut leaves a much smaller tip at the end
of the wire than the semi-flush cut – without
reducing the cutting capacity. The cutting
edges are finer than on semi-flush cutters. The
effort exerted when cutting is less and the load
on the component is reduced. Flush wire ends
reduce the effort needed to fit components on
printed-circuit boards. Erem guarantees precise
cutting even after frequent use.

Super full flush

Only Erem offers you a super full flush cut.
This cut provides absolutely flush wire ends.
No rework is needed. Cutters with this cut are
absolutely precision-ground and sharpened.
The effort exerted when cutting is low, as is
the load on the component caused by the cut.
Soldering tags in soldering-bath procedures are
prevented. Cutters of this type are used in
microelectronics, space travel or medical tech-
nology. These cutters are suitable for soft
wires.
