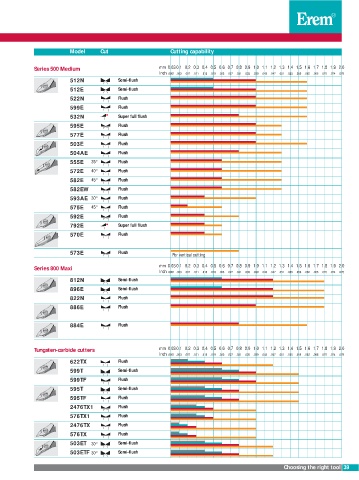

P. 38

Model     Cut                     Cutting capability


            Series 500 Medium                         mm 0.03 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
                                                      Inch .0001 .003  .007  .011  .015  .019  .023  .027  .031  .035  .039  .043  .047  .051  .055  .059  .062  .066  .070  .074  .078
                        512N            Semi-flush
                        512E            Semi-flush
                        522N            Flush
                        599E            Flush
                        532N            Super full flush
                        595E            Flush
                        577E            Flush
                        503E            Flush
                        504AE           Flush
                        555E   35°      Flush
                        572E   40°      Flush
                        582E   45°      Flush
                        582EW           Flush
                        593AE 30°       Flush
                        575E   45°      Flush
                        592E            Flush
                        792E            Super full flush
                        570E            Flush


                        573E            Flush             For vertical cutting
                                                      mm 0.03 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
            Series 800 Maxi
                                                      Inch .0001 .003  .007  .011  .015  .019  .023  .027  .031  .035  .039  .043  .047  .051  .055  .059  .062  .066  .070  .074  .078
                        812N            Semi-flush
                        896E            Semi-flush
                        822N            Flush
                        886E            Flush


                        884E            Flush



            Tungsten-carbide cutters                  mm 0.03 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0
                                                      Inch .0001 .003  .007  .011  .015  .019  .023  .027  .031  .035  .039  .043  .047  .051  .055  .059  .062  .066  .070  .074  .078
                        622TX           Flush
                        599T            Semi-flush
                        599TF           Flush
                        595T            Semi-flush
                        595TF           Flush
                        2476TX1         Flush
                        576TX1          Flush
                        2476TX          Flush
                        576TX           Flush
                        503ET  30°      Semi-flush
                        503ETF 30°      Semi-flush

                                                                                               Choosing the right tool 39
