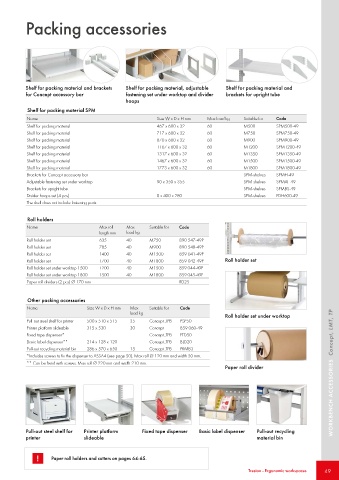

Page 49 - Treston

Packing accessories

Shelf for packing material and brackets Shelf for packing material, adjustable Shelf for packing material and
for Concept accessory bar fastening set under worktop and divider brackets for upright tube
hoops

Shelf for packing material SPM
Name Size W x D x H mm Max load kg Suitable for Code
Shelf for packing material 467 x 600 x 32 60 M500 SPM500-49
Shelf for packing material 717 x 600 x 32 60 M750 SPM750-49
Shelf for packing material 870 x 600 x 32 60 M900 SPM900-49
Shelf for packing material 1167 x 600 x 32 60 M1200 SPM1200-49
Shelf for packing material 1317 x 600 x 32 60 M1350 SPM1350-49
Shelf for packing material 1467 x 600 x 32 60 M1500 SPM1500-49
Shelf for packing material 1773 x 600 x 32 60 M1800 SPM1800-49
Brackets for Concept accessory bar SPM-shelves SPMH-49
Adjustable fastening set under worktop 90 x 350 x 355 SPM-shelves SPMAF-49
Brackets for upright tube SPM-shelves SPMBS-49
Divider hoops set (4 pcs) 8 x 400 x 280 SPM-shelves PDH600-49
The shelf does not include fastening parts.

Roll holders
Name Max roll Max Suitable for Code
length mm load kg
Roll holder set 635 40 M750 890 547-49P
Roll holder set 785 40 M900 890 548-49P
Roll holder set 1400 40 M1500 859 041-49P
Roll holder set 1700 40 M1800 859 042-49P Roll holder set
Roll holder set under worktop 1500 1200 40 M1500 859 044-49P
Roll holder set under worktop 1800 1500 40 M1800 859 045-49P
Paper roll dividers (2 pcs) Ø 170 mm RD25

Other packing accessories
Name Size W x D x H mm Max Suitable for Code
load kg
Roll holder set under worktop
Pull-out steel shelf for printer 500 x 510 x 515 35 Concept ,TPB PSP50
Printer platform slideable 315 x 530 30 Concept 859 060-49
Fixed tape dispenser* Concept ,TPB FTD50
Basic label dispenser** 214 x 128 x 120 Concept ,TPB BLD20
Pull-out recycling material bin 286 x 570 x 650 15 Concept ,TPB PRMB3
*Includes screws to fix the dispenser to ASSA4 (see page 50). Max roll Ø 120 mm and width 50 mm.
** Can be fixed with screws. Max roll Ø 220 mm and width 210 mm.
Paper roll divider WORKBENCH ACCESSORIES Concept, LMT, TP

Pull-out steel shelf for Printer platform Fixed tape dispenser Basic label dispenser Pull-out recycling
printer slideable material bin

! Paper roll holders and cutters on pages 64-65.

Treston - Ergonomic workspaces 49
