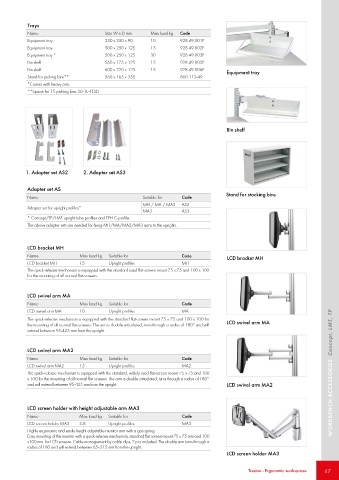

Page 47 - Treston

Trays
Name Size W x D mm Max load kg Code
Equipment tray 250 x 250 x 90 10 928 49 001P
Equipment tray 500 x 250 x 125 15 928 49 002P
Equipment tray * 500 x 250 x 125 30 928 49 003P
Bin shelf 560 x 175 x 125 15 928 49 005P
Bin shelf 600 x 220 x 125 15 928 49 006P Equipment tray
Stand for picking bins** 560 x 165 x 355 860 113-49
*Comes with heavy arm.
**Space for 15 picking bins 30-1L-4ESD

Bin shelf

1. Adapter set AS2 2. Adapter set AS3

Adapter set AS
Stand for stacking bins
Name Suitable for Code
MH / MA / MA2 AS2
Adapter set for upright profiles*
MA3 AS3
* Concept/TP/LMT upright tube profiles and TPH C-profile
The above adapter sets are needed for fixing MH/MA/MA2/MA3 arms to the uprights.

LCD bracket MH
Name Max load kg Suitable for Code
LCD bracket MH
LCD bracket MH 15 Upright profiles MH
The quick-release mechanism is equipped with the standard used flat-screen mount 75 x 75 and 100 x 100
for the mounting of all normal flat-screens.

LCD swivel arm MA
Name Max load kg Suitable for Code
LCD swivel arm MA 10 Upright profiles MA
The quick-release mechanism is equipped with the standard flat-screen mount 75 x 75 and 100 x 100 for LCD swivel arm MA
the mounting of all normal flat-screens. The arm is double articulated, turns through a radius of 180° and will
extend between 95-425 mm from the upright.

LCD swivel arm MA2
Name Max load kg Suitable for Code
LCD swivel arm MA2 15 Upright profiles MA2
The quick-release mechanism is equipped with the standard, widely used flat-screen mount 75 x 75 and 100 WORKBENCH ACCESSORIES Concept, LMT, TP
x 100 for the mounting of all normal flat-screens. The arm is double articulated, turns through a radius of 180°
and will extend between 95-425 mm from the upright. LCD swivel arm MA2

LCD screen holder with height adjustable arm MA3
Name Max load kg Suitable for Code
LCD screen holder MA3 3-8 Upright profiles MA3
Highly ergonomic and easily height adjustable monitor arm with a gas spring.
Easy mounting of the monitor with a quick-release mechanism, standard flat screen mount 75 x 75 mm and 100
x100 mm for LCD screens. Cable management by cable clips, 2 pcs included. The double arm turns through a
radius of 180 and will extend between 65–515 mm from the upright.
LCD screen holder MA3
