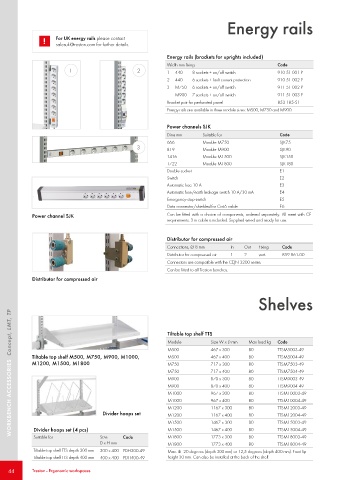

Page 44 - Treston

Energy rails

! For UK energy rails please contact
salesuk@treston.com for further details.

Energy rails (brackets for uprights included)
Width mm fixing Code
1 2 1 440 8 sockets + on/off switch 910 51 001 P
2 440 6 sockets + fault current protection 910 51 002 P
3 M750 6 sockets + on/off switch 911 51 002 P
M900 7 sockets + on/off switch 911 51 003 P
Bracket pair for perforated panel 853 185-51
Energy rails are available in three module sizes: M500, M750 and M900.

Power channels SJK
Dims mm Suitable for Code
666 Module M750 SJK75
3 819 Module M900 SJK90
1416 Module M1500 SJK150
1722 Module M1800 SJK180
Double socket E1
Switch E2
Automatic fuse 10 A E3
Automatic fuse/earth leakage switch 10 A/30 mA E4
Emergency-stop-switch E5
Data connector/shielded for Cat.6 cable E6
Power channel SJK Can be fitted with a choice of components, ordered separately. All meet with CE
requirements. 3 m cable is included. Supplied wired and ready for use.

Distributor for compressed air
Connections, Ø 8 mm In Out Fixing Code
Distributor for compressed air 1 2 vert. 859 861-00
Connectors are compatible with the CEJN 3200 series.
Can be fitted to all Treston benches.
Distributor for compressed air

Shelves

WORKBENCH ACCESSORIES Concept, LMT, TP

Tiltable top shelf TTS
Module Size W x D mm Max load kg Code
M500 467 x 300 80 TTSM5003-49
Tiltable top shelf M500, M750, M900, M1000, M500 467 x 400 80 TTSM5004-49
M1200, M1500, M1800 M750 717 x 300 80 TTSM7503-49
M750 717 x 400 80 TTSM7504-49
M900 870 x 300 80 TTSM9003-49
M900 870 x 400 80 TTSM9004-49
M1000 967 x 300 80 TTSM10003-49
M1000 967 x 400 80 TTSM10004-49
M1200 1167 x 300 80 TTSM12003-49
Divider hoops set M1200 1167 x 400 80 TTSM12004-49
M1500 1467 x 300 80 TTSM15003-49
Divider hoops set (4 pcs) M1500 1467 x 400 80 TTSM15004-49
Suitable for Size Code M1800 1773 x 300 80 TTSM18003-49
D x H mm M1800 1773 x 400 80 TTSM18004-49
Tiltable top shelf TTS depth 300 mm 300 x 400 PDH300-49 Max. tilt 20 degrees (depth 300 mm) or 12,5 degrees (depth 400 mm). Front lip
Tiltable top shelf TTS depth 400 mm 400 x 400 PDH400-49 height 30 mm. Can also be installed at the back of the shelf.
44 Treston - Ergonomic workspaces
