Page 39 - Treston

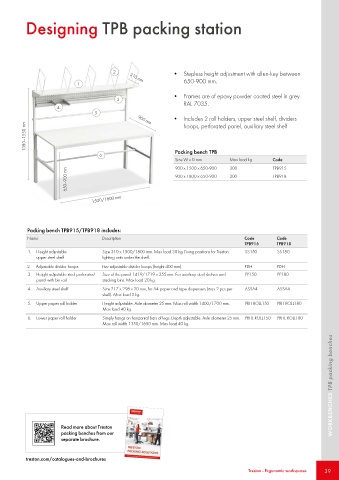

Designing TPB packing station

2 • Stepless height adjustment with allen-key between
650-900 mm.
310 mm
1
• Frames are of epoxy powder coated steel in grey
3
RAL 7035.
4
5
• Includes 2 roll holders, upper steel shelf, dividers
900 mm
1080–1550 mm
hoops, perforated panel, auxiliary steel shelf

6 Packing bench TPB
Size W x D mm Max load kg Code
TPB915
300
900 x 1500 x 650-900
650–900 mm 900 x 1800 x 650-900 300 TPB918

1500/1800 mm

Packing bench TPB915/TPB918 includes:
Name Description Code Code
TPB915 TPB918
1. Height adjustable Size 310 x 1500/1800 mm. Max load 30 kg. Fixing positions for Treston SS150 SS180
upper steel shelf lighting units under the shelf.
2. Adjustable divider hoops Five adjustable divider hoops (height 400 mm). PDH PDH
3. Height adjustable steel perforated Size of the panel 1419/1719 x 255 mm. For auxiliary steel shelves and PP150 PP180
panel with bin rail stacking bins. Max load 20 kg.
4. Auxiliary steel shelf Size 217 x 298 x 20 mm, for A4 paper and tape dispensers (max 2 pcs per ASSA4 ASSA4
shelf). Max load 3 kg.
5. Upper paper roll holder Height adjustable. Axle diameter 25 mm. Max roll width 1400/1700 mm. PRH ROLL150 PRH ROLL180
Max load 40 kg.
6. Lower paper roll holder Simply hangs on horizontal bars of legs. Depth adjustable. Axle diameter 25 mm. PRHL ROLL150 PRHL ROLL180
Max roll width 1350/1650 mm. Max load 40 kg.

Read more about Treston WORKBENCHES TPB packing benches
packing benches from our
separate brochure.

treston.com/catalogues-and-brochures
Treston - Ergonomic workspaces 39
