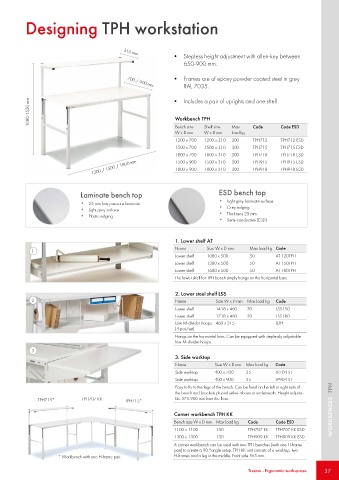

Designing TPH workstation

310 mm
• Stepless height adjustment with allen-key between
650-900 mm.

• Frames are of epoxy powder coated steel in grey
RAL 7035.
700 / 900 mm

1080-1550 mm • Includes a pair of uprights and one shelf

Workbench TPH
Bench size Shelf size Max Code Code ESD
W x D mm W x D mm load kg
1200 x 700 1200 x 310 300 TPH712 TPH712 ESD
1500 x 700 1500 x 310 300 TPH715 TPH715 ESD
1800 x 700 1800 x 310 300 TPH718 TPH718 ESD
1200 / 1500 / 1800 mm 1500 x 900 1500 x 310 300 TPH915 TPH915 ESD
1800 x 900
1800 x 310
TPH918 ESD
TPH918
300
Laminate bench top ESD bench top
• Light grey laminate surface
• 25 mm low pressure laminate
• Light grey surface • Grey edging
• Plastic edging • Thickness 25 mm
• Semi-conductive (ESD)

1. Lower shelf AT
Name Size W x D mm Max load kg Code
1
Lower shelf 1080 x 500 50 AT 120TPH
Lower shelf 1380 x 500 50 AT 150TPH
Lower shelf 1680 x 500 50 AT 180TPH
The lower shelf for TPH bench simply hangs on the horizontal bars.

2. Lower steel shelf LSS
2 Name Size W x D mm Max load kg Code
Lower shelf 1418 x 460 30 LSS150
Lower shelf 1718 x 460 30 LSS180
Low M-divider hoops 460 x 315 LDH
(4 pcs/set)
Hangs on the horizontal bars. Can be equipped with steplessly adjustable
low M-divider hoops.
3
3. Side worktop
Name Size W x D mm Max load kg Code
Side worktop 400 x 700 35 TP704 ST
Side worktop 400 x 900 35 TP904 ST
Easy to fix to the legs of the bench. Can be fixed on the left or right side of
the bench and brackets placed either above or underneath. Height adjusta-
TPH715* TPH707 KK TPH715* ble 575-900 mm from the floor.

Corner workbench TPH KK WORKBENCES TPH
Bench size W x D mm Max load kg Code Code ESD
1100 x 1100 150 TPH707 KK TPH707 KK ESD
1300 x 1300 150 TPH909 KK TPH909 KK ESD
A corner workbench can be used with two TPH benches (with one H-frame
pair) to create a 90 °angle setup. TPH KK unit consists of a worktop, two
* Workbench with one H-frame pair. H-frames and a leg in the middle. Front side 565 mm.
