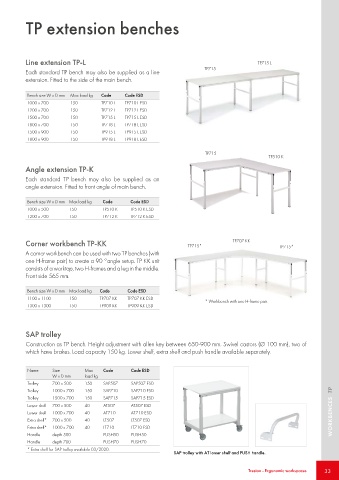

Page 33 - Treston

TP extension benches

Line extension TP-L TP715 L
TP715
Each standard TP bench may also be supplied as a line
extension. Fitted to the side of the main bench.

Bench size W x D mm Max load kg Code Code ESD
1000 x 700 150 TP710 L TP710 L ESD
1200 x 700 150 TP712 L TP712 L ESD
1500 x 700 150 TP715 L TP715 L ESD
1800 x 700 150 TP718 L TP718 L ESD
1500 x 900 150 TP915 L TP915 L ESD
1800 x 900 150 TP918 L TP918 L ESD

TP715
TP510 K
Angle extension TP-K
Each standard TP bench may also be supplied as an
angle extension. Fitted to front angle of main bench.

Bench size W x D mm Max load kg Code Code ESD
1000 x 500 150 TP510 K TP510 K ESD
1200 x 700 150 TP712 K TP712 K ESD

Corner workbench TP-KK TP715* TP707 KK TP715*

A corner workbench can be used with two TP benches (with
one H-frame pair) to create a 90 °angle setup. TP KK unit
consists of a worktop, two H-frames and a leg in the middle.
Front side 565 mm.

Bench size W x D mm Max load kg Code Code ESD
1100 x 1100 150 TP707 KK TP707 KK ESD
* Workbench with one H-frame pair.
1300 x 1300 150 TP909 KK TP909 KK ESD

SAP trolley

Construction as TP bench. Height adjustment with allen key between 650-900 mm. Swivel castors (Ø 100 mm), two of
which have brakes. Load capacity 150 kg. Lower shelf, extra shelf and push handle available separately.

Name Size Max Code Code ESD
W x D mm load kg
Trolley 700 x 500 150 SAP507 SAP507 ESD
Trolley 1000 x 700 150 SAP710 SAP710 ESD
Trolley 1500 x 700 150 SAP715 SAP715 ESD
Lower shelf 700 x 500 40 AT507 AT507 ESD
Lower shelf 1000 x 700 40 AT710 AT710 ESD WORKBENCES TP
Extra shelf* 700 x 500 40 LT507 LT507 ESD
Extra shelf* 1000 x 700 40 LT710 LT710 ESD
Handle depth 500 PUSH50 PUSH50
Handle depth 700 PUSH70 PUSH70
* Extra shelf for SAP trolley available 03/2020.
SAP trolley with AT lower shelf and PUSH handle.

Treston - Ergonomic workspaces 33
