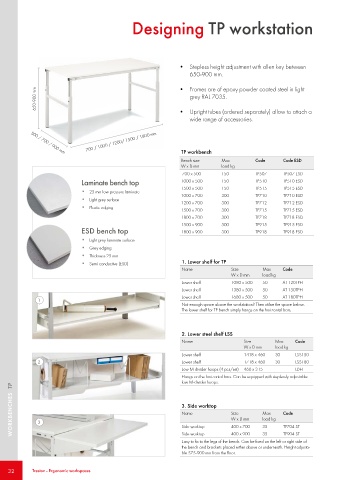

Page 32 - Treston

Designing TP workstation

• Stepless height adjustment with allen key between
650-900 mm.

650-900 mm • Frames are of epoxy powder coated steel in light
grey RAL 7035.

• Upright tubes (ordered separately) allow to attach a
wide range of accessories.

700 / 1000 / 1200/ 1500 / 1800 mm

TP workbench
500 / 700 / 900 mm
Bench size Max Code Code ESD
W x D mm load kg
700 x 500 150 TP507 TP507 ESD
Laminate bench top 1000 x 500 150 TP510 TP510 ESD
1500 x 500 150 TP515 TP515 ESD
• 25 mm low pressure laminate
1000 x 700 300 TP710 TP710 ESD
• Light grey surface
1200 x 700 300 TP712 TP712 ESD
• Plastic edging
1500 x 700 300 TP715 TP715 ESD
1800 x 700 300 TP718 TP718 ESD
1500 x 900 300 TP915 TP915 ESD
ESD bench top 1800 x 900 300 TP918 TP918 ESD
• Light grey laminate surface
• Grey edging
• Thickness 25 mm
1. Lower shelf for TP
• Semi-conductive (ESD)
Name Size Max Code
W x D mm load kg
Lower shelf 1080 x 500 50 AT 120TPH
Lower shelf 1380 x 500 50 AT 150TPH
Lower shelf 1680 x 500 50 AT 180TPH
1
Not enough space above the workstation? Then utilise the space below.
The lower shelf for TP bench simply hangs on the horizontal bars.

2. Lower steel shelf LSS
Name Size Max Code
W x D mm load kg
Lower shelf 1418 x 460 30 LSS150
2 Lower shelf 1718 x 460 30 LSS180
Low M-divider hoops (4 pcs/set) 460 x 315 LDH
Hangs on the horizontal bars. Can be equipped with steplessly adjustable
low M-divider hoops.
WORKBENCHES TP 3 3. Side worktop Size Max Code

Name
load kg
W x D mm
400 x 700
35
TP704 ST
Side worktop
Side worktop
400 x 900
35
TP904 ST
Easy to fix to the legs of the bench. Can be fixed on the left or right side of
the bench and brackets placed either above or underneath. Height adjusta-
ble 575-900 mm from the floor.
