Page 29 - Treston

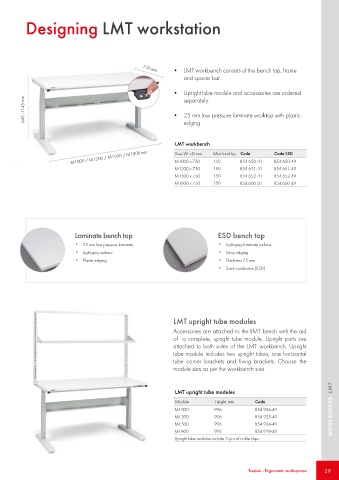

Designing LMT workstation

• LMT workbench consists of the bench top, frame
750 mm
and spacer bar.

• Upright tube module and accessories are ordered
645 -1145 mm • 25 mm low pressure laminate worktop with plastic
separately.

edging

LMT workbench
M1000 / M1200 / M1500 / M1800 mm M1000 x 750 Max load kg Code 854 650-49
Code ESD
Size W x D mm
854 650-41
150
M1200 x 750 150 854 651-41 854 651-49
M1500 x 750 150 854 652-41 854 652-49
M1800 x 750 150 854 660-41 854 660-49

Laminate bench top ESD bench top

• 25 mm low pressure laminate • Light grey laminate surface
• Light grey surface • Grey edging
• Plastic edging • Thickness 25 mm
• Semi-conductive (ESD)

LMT upright tube modules

Accessories are attached to the LMT bench with the aid
of a complete, upright tube module. Upright parts are
attached to both sides of the LMT workbench. Upright
tube module includes two upright tubes, one horizontal
tube corner brackets and fixing brackets. Choose the
module size as per the workbench size.

LMT upright tube modules

Module Height, mm Code
M1000 996 854 926-49 WORKBENCES LMT
M1200 996 854 925-49
M1500 996 854 924-49
M1800 996 854 928-49
Upright tube modules include 5 pcs of cable clips.

Treston - Ergonomic workspaces 29
