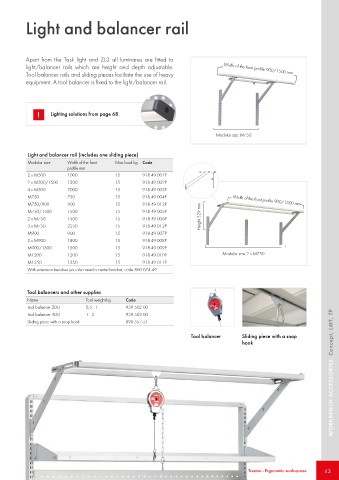

Light and balancer rail

Apart from the Task light and ZL3 all luminares are fitted to
light/balancer rails which are height and depth adjustable. Width of the front profile 900/1500 mm
Tool balancer rails and sliding pieces faciliate the use of heavy
equipment. A tool balancer is fixed to the light/balancer rail.

! Lighting solutions from page 68.

Modular size M750

    
Light and balancer rail (includes one sliding piece)
Modular size Width of the front Max load kg Code
profile mm
2 x M500 1000 15 918 49 001P

2 x M500/1500 1500 15 918 49 002P
4 x M500 2000 15 918 49 003P
M750 750 15 918 49 004P Width of the front profile 900/1500 mm
M750/900 900 15 918 49 013P
       

   
M750/1500 1500 15 918 49 005P    
      
  
2 x M750 1500 15 918 49 006P  Height 329 mm

3 x M750 2250 15 918 49 012P
M900 900 15 918 49 007P
2 x M900 1800 15 918 49 008P
M900/1500 1500 15 918 49 009P
M1200 1200 15 918 49 010P Modular size 2 x M750
M1350 1350 15 918 49 011P
With extension benches you also need a center bracket, code 860 074-49

Tool balancers and other supplies
Name Tool weight kg Code
Tool balancer 2DU 0,5 - 1 939 502-00
Tool balancer 4DU 1 - 2 939 503-00
Sliding piece with a snap hook 890 557-51

Tool balancer Sliding piece with a snap
hook WORKBENCH ACCESSORIES Concept, LMT, TP

Treston - Ergonomic workspaces 43
