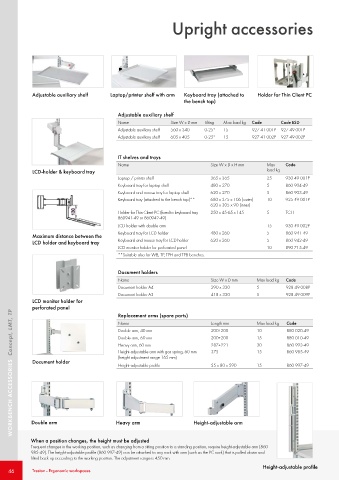

Page 46 - Treston

Upright accessories

Adjustable auxiliary shelf Laptop/printer shelf with arm Keyboard tray (attached to Holder for Thin Client PC
the bench top)
Adjustable auxiliary shelf
Name Size W x D mm Tilting Max load kg Code Code ESD
Adjustable auxiliary shelf 560 x 340 0-25° 15 927 41 001P 927 49 001P
Adjustable auxiliary shelf 605 x 405 0-25° 15 927 41 002P 927 49 002P

IT shelves and trays
Name Size W x D x H mm Max Code
LCD-holder & keyboard tray load kg
Laptop / printer shelf 365 x 365 25 930 49 001P
Keyboard tray for laptop shelf 480 x 270 5 860 904-49
Keyboard and mouse tray for laptop shelf 620 x 270 5 860 903-49
Keyboard tray (attached to the bench top)** 680 x 375 x 106 (outer) 10 925 49 001P
620 x 305 x 90 (inner)
Holder for Thin Client PC (fixed to keyboard tray 250 x 45-65 x 145 5 TCH
860941-49 or 860942-49)
LCD holder with double arm 15 930 49 002P
Keyboard tray for LCD holder 480 x 260 5 860 941-49
Maximum distance between the
LCD holder and keyboard tray Keyboard and mouse tray for LCD holder 620 x 260 5 860 942-49
LCD monitor holder for perforated panel 10 890 715-49
**Suitable also for WB, TP, TPH and TPB benches.

Document holders
Name Size W x D mm Max load kg Code
Document holder A4 290 x 330 5 928 49 008P
Document holder A3 418 x 330 5 928 49 009P
LCD monitor holder for
perforated panel
WORKBENCH ACCESSORIES Concept, LMT, TP
Replacement arms (spare parts)
Name Length mm Max load kg Code
Double arm, 40 mm 200+200 10 880 020-49
Double arm, 60 mm 200+200 15 880 010-49
Heavy arm, 60 mm 287+221 30 860 993-49
Height-adjustable arm with gas spring, 60 mm 375 15 860 985-49
(height adjustment range 165 mm)
Document holder
Height-adjustable profile 55 x 80 x 590 15 860 997-49

Double arm Heavy arm Height-adjustable arm

When a position changes, the height must be adjusted
Frequent changes in the working position, such as changing from a sitting position to a standing position, require height-adjustable arm (860
985-49). The height-adjustable profile (860 997-49) can be attached to any rack with arm (such as the PC rack) that is pulled down and
lifted back up according to the working position. The adjustment range is 450 mm.
Height-adjustable profile
46 Treston - Ergonomic workspaces
