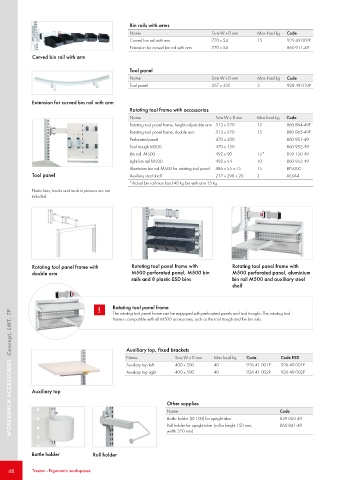

Page 48 - Treston

Bin rails with arms
Name Size W x D mm Max load kg Code
Curved bin rail with arm 770 x 54 15 929 49 002P
Extension for curved bin rail with arm 770 x 54 860 911-49
Curved bin rail with arm

Tool panel
Name Size W x D mm Max load kg Code
Tool panel 267 x 305 5 928 49 010P

Extension for curved bin rail with arm
Rotating tool frame with accessories
Name Size W x D mm Max load kg Code
Rotating tool panel frame, height-adjustable arm 513 x 320 15 860 864-49P
Rotating tool panel frame, double arm 513 x 320 15 880 865-49P
Perforated panel 470 x 300 860 951-49
Tool trough M500 470 x 150 860 952-49
Bin rail M500 492 x 90 15* 859 150-49
Light bin rail M500 492 x 54 10 860 953-49
Aluminium bin rail M500 for rotating tool panel 486 x 55 x 75 15 BP500C
Tool panel Auxiliary steel shelf 217 x 298 x 20 3 ASSA4
*Actual bin rail max load 40 kg but with arm 15 kg.
Plastic bins, hooks and tools in pictures are not
included.

Rotating tool panel frame with Rotating tool panel frame with Rotating tool panel frame with
double arm M500 perforated panel, M500 bin M500 perforated panel, aluminium
rails and 8 plastic ESD bins bin rail M500 and auxiliary steel
shelf

! Rotating tool panel frame
WORKBENCH ACCESSORIES Concept, LMT, TP
The rotating tool panel frame can be equipped with perforated panels and tool troughs. The rotating tool
frame is compatible with all M500 accessories, such as the tool trough and the bin rails.

Auxiliary top, fixed brackets
Name Size W x D mm Max load kg Code Code ESD
Auxiliary top left 400 x 500 40 926 41 001P 926 49 001P
Auxiliary top right 400 x 500 40 926 41 002P 926 49 002P

Auxiliary top

Other supplies
Name Code
Bottle holder (Ø 100) for upright tube 859 063-49
Roll holder for upright tube (roll ø height 150 mm, 860 841-49
width 320 mm)

Bottle holder Roll holder

48 Treston - Ergonomic workspaces
