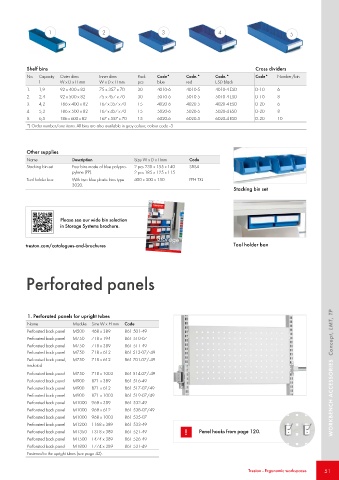

P. 51

1                  2                    3                   4                        5






          Shelf bins                                                                       Cross dividers
          No.  Capacity   Outer dims  Inner dims  Pack  Code*     Code.*     Code.*        Code*  Number/bin
               l      W x D x H mm  W x D x H mm  pcs   blue      red        ESD black
          1.   1,9    92 x 400 x 82  75 x 357 x 70  30  4010-6    4010-5     4010-4 ESD    D-10   6
          2.   2,4    92 x 500 x 82  75 x 457 x 70  30  5010-6    5010-5     5010-4 ESD    D-10   8
          3.   4,2    186 x 400 x 82  167 x 357 x 70  15  4020-6  4020-5     4020-4 ESD    D-20   6
          4.   5,3    186 x 500 x 82  167 x 457 x 70  15  5020-6  5020-5     5020-4 ESD    D-20   8
          5.   6,5    186 x 600 x 82  167 x 557 x 70  15  6020-6  6020-5     6020-4 ESD    D-20   10
          *) Order number/one items. All bins are also available in grey colour, colour code -3




          Other supplies
          Name            Description           Size W x D x Hmm    Code
          Stacking bin set  Four bins made of blue polypro-  2 pcs 230 x 155 x 140   SBS4
                          pylene (PP).          2 pcs 185 x 125 x 115
          Tool holder box  With two blue plastic bins type   400 x 300 x 150  PPH TXL
                          3020.
                                                                                   Stacking bin set





                      Please see our wide bin selection
                      in Storage Systems brochure.


          treston.com/catalogues-and-brochures                                     Tool holder box





          Perforated panels







           1. Perforated panels for upright tubes
           Name            Module  Size W x H mm  Code
           Perforated back panel  M500  468 x 389  861 501-49
           Perforated back panel  M750  718 x 194  861 510-07
           Perforated back panel  M750  718 x 389  861 511-49
           Perforated back panel  M750  718 x 612  861 512-07/-49
           Perforated back panel,   M750  718 x 612  861 701-07/-49
           insulated
           Perforated back panel  M750  718 x 1003  861 514-07/-49                                                    WORKBENCH ACCESSORIES  Concept, LMT, TP
           Perforated back panel  M900  871 x 389  861 516-49
           Perforated back panel  M900  871 x 612  861 517-07/49
           Perforated back panel  M900  871 x 1003  861 519-07/49
           Perforated back panel  M1000  968 x 389  861 532-49
           Perforated back panel  M1000  968 x 612  861 538-07/49
           Perforated back panel  M1000  968 x 1003  861 535-07
           Perforated back panel  M1200  1168 x 389  861 533-49
           Perforated back panel   M1350  1318 x 389  861 521-49  !    Panel hooks from page 120.
           Perforated back panel   M1500  1474 x 389  861 526-49
           Perforated back panel   M1800  1774 x 389  861 531-49
           Fastened to the upright tubes (see page 42).

                                                                                        Treston - Ergonomic workspaces  51
