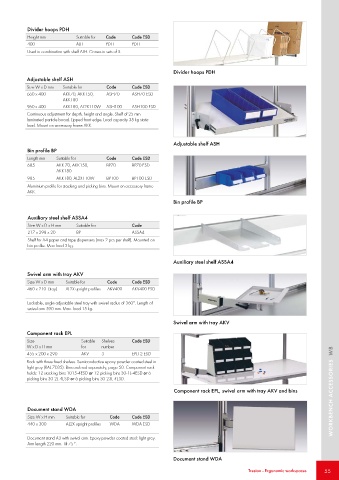

Page 55 - Treston

Divider hoops PDH
Height mm Suitable for Code Code ESD
400 ALH PDH PDH
Used in combination with shelf ALH. Comes in sets of 5.

Divider hoops PDH
Adjustable shelf ASH
Size W x D mm Suitable for Code Code ESD
660 x 400 AKK70, AKK150, ASH70 ASH70 ESD
AKK180
960 x 400 AKK180, AL2X110W ASH100 ASH100 ESD
Continuous adjustment for depth, height and angle. Shelf of 25 mm
laminated particle board. Lipped front edge. Load capacity 35 kg static
load. Mount on accessory frame AKK.

Adjustable shelf ASH
Bin profile BP
Length mm Suitable for Code Code ESD
685 AKK 70, AKK150, BP70 BP70 ESD
AKK180
985 AKK180, AL2X110W BP100 BP100 ESD
Aluminium profile for stacking and picking bins. Mount on accessory frame
AKK.
Bin profile BP

Auxiliary steel shelf ASSA4
Size W x D x H mm Suitable for Code
217 x 298 x 20 BP ASSA4
Shelf for A4 paper and tape dispensers (max 2 pcs per shelf). Mounted on
bin profile. Max load 3 kg.

Auxiliary steel shelf ASSA4
Swivel arm with tray AKV
Size W x D mm Suitable for Code Code ESD
460 x 210 (tray) AL2X upright profiles AKV400 AKV400 ESD

Lockable, angle adjustable steel tray with swivel radius of 360°. Length of
swivel arm 590 mm. Max. load 15 kg.

Swivel arm with tray AKV
Component rack EPL
Size Suitable Shelves Code ESD
W x D x H mm for number
455 x 200 x 290 AKV 3 EPL12 ESD
Rack with three fixed shelves. Semiconductive epoxy powder coated steel in
light grey (RAL 7035). Bins ordered separately, page 50. Component rack
holds: 12 stacking bins 1015-4ESD or 12 picking bins 30-1L-4ESD or 6
picking bins 30-2L-4ESD or 6 picking bins 30-23L-4ESD.

Component rack EPL, swivel arm with tray AKV and bins WORKBENCH ACCESSORIES WB

Document stand WDA
Size W x H mm Suitable for Code Code ESD
440 x 300 AL2X upright profiles WDA WDA ESD

Document stand A3 with swivel arm. Epoxy powder coated steel: light grey.
Arm length 220 mm. Tilt 75°.

Document stand WDA
Treston - Ergonomic workspaces 55
