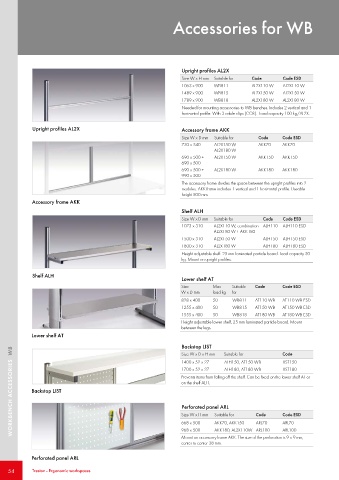

Page 54 - Treston

Accessories for WB

Upright profiles AL2X
Size W x H mm Suitable for Code Code ESD
1063 x 900 WB811 AL2X110 W AL2X110 W
1489 x 900 WB815 AL2X150 W AL2X150 W
1789 x 900 WB818 AL2X180 W AL2X180 W
Needed for mounting accessories to WB benches. Includes 2 vertical and 1
horizontal profile. With 3 cable clips (CC8). Load capacity 100 kg/AL2X.

Upright profiles AL2X Accessory frame AKK
Size W x D mm Suitable for Code Code ESD
730 x 540 AL2X150 W AKK70 AKK70
AL2X180 W
690 x 500 + AL2X150 W AKK150 AKK150
690 x 500
690 x 500 + AL2X180 W AKK180 AKK180
990 x 500
The accessory frame divides the space between the upright profiles into 2
modules. AKK frame includes 1 vertical and 1 horizontal profile. Useable
height 500 mm.
Accessory frame AKK
Shelf ALH
Size W x D mm Suitable for Code Code ESD
1073 x 310 AL2X110 W, combination ALH110 ALH110 ESD
AL2X180 W + AKK180
1500 x 310 AL2X150 W ALH150 ALH150 ESD
1800 x 310 AL2X180 W ALH180 ALH180 ESD
Height adjustable shelf. 25 mm laminated particle board. Load capacity 50
kg. Mount on upright profiles.

Shelf ALH
Lower shelf AT
Size Max Suitable Code Code ESD
W x D mm load kg for
828 x 400 50 WB811 AT110 WB AT110 WB ESD
1255 x 400 50 WB815 AT150 WB AT150 WB ESD
1555 x 400 50 WB818 AT180 WB AT180 WB ESD
Height adjustable lower shelf, 25 mm laminated particle board. Mount
between the legs.
Lower shelf AT Backstop LIST Suitable for Code

WORKBENCH ACCESSORIES WB Backstop LIST 1700 x 52 x 27 ALH180, AT180 WB LIST180
Size W x D x H mm
ALH150, AT150 WB
LIST150
1400 x 52 x 27
Prevents items from falling off the shelf. Can be fixed on the lower shelf AT or
on the shelf ALH.

Perforated panel ARL
Code
Code ESD
Size W x H mm
Suitable for
ARL70
ARL70
AKK70, AKK150
668 x 500
968 x 500
AKK180, AL2X110W ARL100
ARL100
Mount on accessory frame AKK. The size of the perforation is 9 x 9 mm,
center to center 38 mm.
Perforated panel ARL
