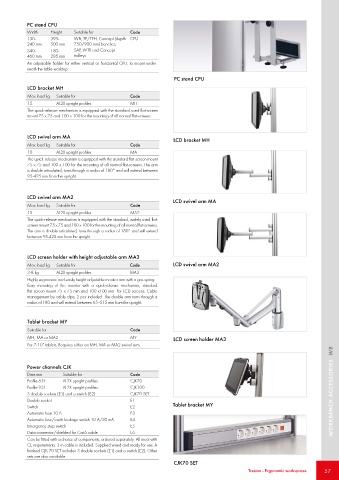

Page 57 - Treston

PC stand CPU
Width Height Suitable for Code
130- 395- WB, TP/TPH, Concept (depth CPU
240 mm 500 mm 750/900 mm) benches,
340- 180- SAP, WTR and Concept
460 mm 285 mm trolleys
An adjustable holder for either vertical or horizontal CPU, to mount under-
neath the table worktop.
PC stand CPU

LCD bracket MH
Max load kg Suitable for Code
15 AL2X upright profiles MH
The quick-release mechanism is equipped with the standard used flat-screen
mount 75 x 75 and 100 x 100 for the mounting of all normal flat-screens.

LCD swivel arm MA
LCD bracket MH
Max load kg Suitable for Code
10 AL2X upright profiles MA
The quick-release mechanism is equipped with the standard flat-screen mount
75 x 75 and 100 x 100 for the mounting of all normal flat-screens. The arm
is double articulated, turns through a radius of 180° and will extend between
95-425 mm from the upright.

LCD swivel arm MA2
LCD swivel arm MA
Max load kg Suitable for Code
15 AL2X upright profiles MA2
The quick-release mechanism is equipped with the standard, widely used flat-
screen mount 75 x 75 and 100 x 100 for the mounting of all normal flat-screens.
The arm is double articulated, turns through a radius of 180° and will extend
between 95-425 mm from the upright.

LCD screen holder with height adjustable arm MA3
Max load kg Suitable for Code LCD swivel arm MA2
3-8 kg AL2X upright profiles MA3
Highly ergonomic and easily height adjustable monitor arm with a gas spring.
Easy mounting of the monitor with a quick-release mechanism, standard
flat screen mount 75 x 75 mm and 100 x100 mm for LCD screens. Cable
management by cable clips, 2 pcs included. The double arm turns through a
radius of 180 and will extend between 65–515 mm from the upright.

Tablet bracket MY
Suitable for Code
MH, MA or MA2 MY LCD screen holder MA3
For 7-10” tablets. Requires either an MH, MA or MA2 swivel arm.

Power channels CJK
Dims mm Suitable for Code
Profile 631 AL2X upright profiles CJK70
Profile 931 AL2X upright profiles CJK100
3 double sockets (E1) and a switch (E2) CJK70 SET WORKBENCH ACCESSORIES WB
Double socket E1
Switch E2 Tablet bracket MY
Automatic fuse 10 A E3
Automatic fuse/earth leakage switch 10 A/30 mA E4
Emergency-stop-switch E5
Data connector/shielded for Cat.6 cable E6
Can be fitted with a choice of components, ordered separately. All meet with
CE requirements. 3 m cable is included. Supplied wired and ready for use. A
finished CJK 70 SET includes 3 double sockets (E1) and a switch (E2). Other
sets are also available.
CJK70 SET
Treston - Ergonomic workspaces 57
