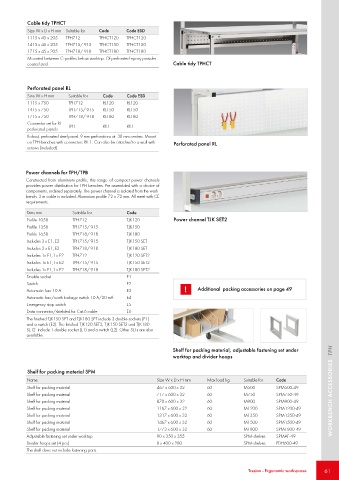

Page 61 - Treston

Cable tidy TPHCT
Size W x D x H mm Suitable for Code Code ESD
1115 x 45 x 205 TPH712 TPHCT120 TPHCT120
1415 x 45 x 205 TPH715/ 915 TPHCT150 TPHCT150
1715 x 45 x 205 TPH718/ 918 TPHCT180 TPHCT180
Mounted between C-profiles below worktop. Of perforated epoxy powder
coated steel. Cable tidy TPHCT

Perforated panel RL
Size W x H mm Suitable for Code Code ESD
1115 x 750 TPH712 RL120 RL120
1415 x 750 TPH715/ 915 RL150 RL150
1715 x 750 TPH718/ 918 RL180 RL180
Connector set for RL TPH RK1 RK1
perforated panels
Robust, perforated steel panel. 9 mm perforations at 38 mm centres. Mount
on TPH-benches with connectors RK 1. Can also be attached to a wall with Perforated panel RL
screws (included).

Power channels for TPH/TPB
Constructed from aluminium profile, this range of compact power channels
provides power distribution for TPH benches. Pre-assembled with a choice of
components, ordered separately. The power channel is isolated from the work-
bench. 3 m cable is included. Aluminium profile 72 x 72 mm. All meet with CE
requirements.
Dims mm Suitable for Code
Profile 1058 TPH712 TJK120 Power channel TJK SET2
Profile 1358 TPH715/ 915 TJK150
Profile 1658 TPH718/ 918 TJK180
Includes 3 x E1, E2 TPH715/ 915 TJK150 SET
Includes 3 x E1, E2 TPH718/ 918 TJK180 SET
Includes 1x E1,1 x E2 TPH712 TJK120 SET2
Includes 1x E1,1 x E2 TPH715/ 915 TJK150 SET2
Includes 1x E1,1 x E2 TPH718/ 918 TJK180 SET2
Double socket E1
Switch E2
Automatic fuse 10 A E3 ! Additional packing accessories on page 49
Automatic fuse/earth leakage switch 10 A/30 mA E4
Emergency-stop-switch E5
Data connector/shielded for Cat.6 cable E6
The finished TJK150 SET and TJK180 SET include 3 double sockets (E1)
and a switch (E2). The finished TJK120 SET2, TJK150 SET2 and TJK180
SET2 include 1 double socket (E1) and a switch (E2). Other SETs are also
available.

Shelf for packing material, adjustable fastening set under
worktop and divider hoops

Shelf for packing material SPM
Name Size W x D x H mm Max load kg Suitable for Code
Shelf for packing material 467 x 600 x 32 60 M500 SPM500-49 WORKBENCH ACCESSORIES TPH
Shelf for packing material 717 x 600 x 32 60 M750 SPM750-49
Shelf for packing material 870 x 600 x 32 60 M900 SPM900-49
Shelf for packing material 1167 x 600 x 32 60 M1200 SPM1200-49
Shelf for packing material 1317 x 600 x 32 60 M1350 SPM1350-49
Shelf for packing material 1467 x 600 x 32 60 M1500 SPM1500-49
Shelf for packing material 1773 x 600 x 32 60 M1800 SPM1800-49
Adjustable fastening set under worktop 90 x 350 x 355 SPM-shelves SPMAF-49
Divider hoops set (4 pcs) 8 x 400 x 280 SPM-shelves PDH600-49
The shelf does not include fastening parts.

Treston - Ergonomic workspaces 61
