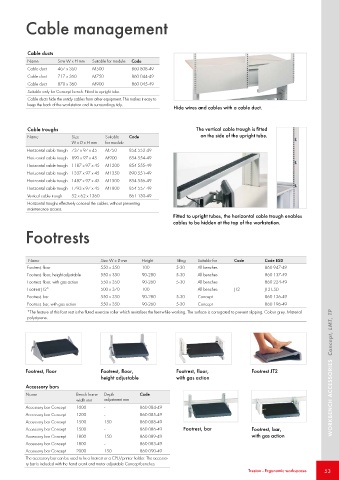

Page 53 - Treston

Cable management

Cable ducts
Name Size W x H mm Suitable for module Code
Cable duct 467 x 360 M500 860 808-49
Cable duct 717 x 360 M750 860 044-49
Cable duct 870 x 360 M900 860 045-49
Suitable only for Concept bench. Fitted to upright tube.
Cable ducts hide the untidy cables from other equipment. This makes it easy to
keep the back of the workstation and its surroundings tidy.
Hide wires and cables with a cable duct.

Cable troughs The vertical cable trough is fitted
Name Size Suitable Code on the side of the upright tube.
W x D x H mm for module
Horizontal cable trough 737 x 97 x 45 M750 854 553-49
Horizontal cable trough 890 x 97 x 45 M900 854 554-49
Horizontal cable trough 1187 x 97 x 45 M1200 854 555-49
Horizontal cable trough 1337 x 97 x 45 M1350 890 551-49
Horizontal cable trough 1487 x 97 x 45 M1500 854 556-49
Horizontal cable trough 1793 x 97 x 45 M1800 854 557-49
Vertical cable trough 52 x 62 x 1360 861 130-49
Horizontal troughs effectively conceal the cables, without preventing
maintenance access.
Fitted to upright tubes, the horizontal cable trough enables
cables to be hidden at the top of the workstation.
Footrests

Name Size W x D mm Height Tilting Suitable for Code Code ESD
Footrest, floor 550 x 350 100 5-30 All benches 860 947-49
Footrest, floor, height adjustable 550 x 350 90-280 5-30 All benches 860 137-49
Footrest, floor, with gas action 550 x 350 90-260 5-30 All benches 860 224-49
Footrest JT2* 500 x 370 100 All benches JT2 JT2 ESD
Footrest, bar 550 x 350 90-280 5-30 Concept 860 136-49
Footrest, bar, with gas action 550 x 350 90-260 5-30 Concept 860 196-49
*The feature of this foot rest is the fluted exercise roller which revitalises the feet while working. The surface is corrugated to prevent slipping. Colour grey. Material
polystyrene.

Footrest, floor Footrest, floor, Footrest, floor, Footrest JT2 WORKBENCH ACCESSORIES Concept, LMT, TP
height adjustable with gas action
Accessory bars
Name Bench frame Depth Code
width mm adjustment mm
Accessory bar Concept 1000 - 860 084-49
Accessory bar Concept 1200 - 860 085-49
Accessory bar Concept 1500 150 860 088-49
Accessory bar Concept 1500 - 860 086-49 Footrest, bar Footrest, bar,
Accessory bar Concept 1800 150 860 089-49 with gas action
Accessory bar Concept 1800 - 860 083-49
Accessory bar Concept 2000 150 860 090-49
The accessory bar can be used to fix a footrest or a CPU/printer holder. The accesso-
ry bar is included with the hand crank and motor adjustable Concept benches.
Treston - Ergonomic workspaces 53
