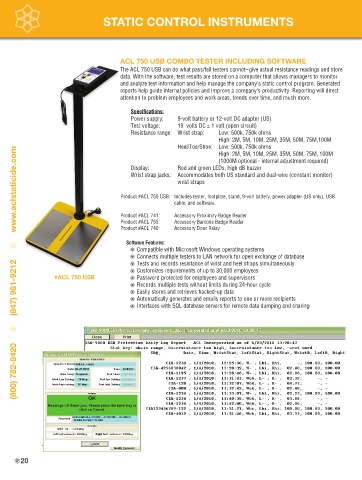

Page 20 - ACL Staticide catalogue

STATIC CONTROL INSTRUMENTS

ACL 750 USB COMBO TESTER INCLUDING SOFTWARE
The ACL 750 USB can do what pass/fail testers cannot–give actual resistance readings and store
data. With the software, test results are stored on a computer that allows managers to monitor
and analyze test information and help manage the company’s static control program. Generated
reports help guide internal policies and improve a company’s productivity. Reporting will direct
attention to problem employees and work areas, trends over time, and much more.

Specifications:
Power supply: 9-volt battery or 12-volt DC adapter (US)
Test voltage: 19 volts DC ± 1 volt (open circuit)
Resistance range: Wrist strap: Low: 500k, 750k ohms
High: 2M, 5M, 10M, 25M, 35M, 50M, 75M,100M
Heel/Toe/Shoe: Low: 500k, 750k ohms
(800) 782-8420 (847) 981-9212 www.aclstaticide.com
High: 2M, 5M, 10M, 25M, 35M, 50M, 75M, 100M
(1000M optional - internal adjustment required)
Display: Red and green LEDs, high dB buzzer
Wrist strap jacks: Accommodates both US standard and dual-wire (constant monitor)
wrist straps

Product #ACL 750 USB: Includes tester, footplate, stand, 9-volt battery, power adapter (US only), USB
cable, and software.

Product #ACL 741: Accessory Proximity Badge Reader
Product #ACL 755: Accessory Barcode Badge Reader
Product #ACL 740: Accessory Door Relay

Software Features:
» Compatible with Microsoft Windows operating systems
» Connects multiple testers to LAN network for open exchange of database
» Tests and records resistance of wrist and heel straps simultaneously
» Customizes requirements of up to 30,000 employees
#ACL 750 USB » Password protected for employees and supervisors
» Records multiple tests without limits during 24-hour cycle
» Easily stores and retrieves backed-up data
» Automatically generates and emails reports to one or more recipients
» Interfaces with SQL database servers for remote data dumping and sharing
