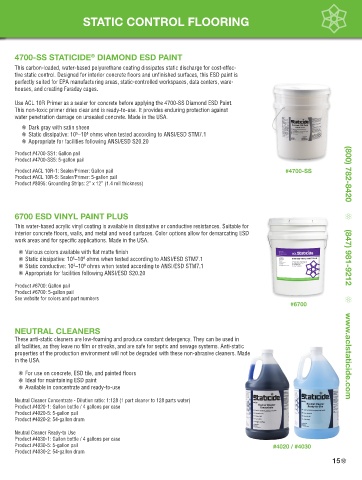

Page 15 - ACL Staticide catalogue

STATIC CONTROL FLOORING

4700-SS STATICIDE DIAMOND ESD PAINT
®
This carbon-loaded, water-based polyurethane coating dissipates static discharge for cost-effec-
tive static control. Designed for interior concrete floors and unfinished surfaces, this ESD paint is
perfectly suited for EPA manufacturing areas, static-controlled workspaces, data centers, ware-
houses, and creating Faraday cages.

Use ACL 10R Primer as a sealer for concrete before applying the 4700-SS Diamond ESD Paint.
This non-toxic primer dries clear and is ready-to-use. It provides enduring protection against
water penetration damage on unsealed concrete. Made in the USA.
» Dark gray with satin sheen
Static dissipative: 10 –10 ohms when tested according to ANSI/ESD STM7.1
5
8
Appropriate for facilities following ANSI/ESD S20.20
Product #4700-SS1: Gallon pail
Product #4700-SS5: 5-gallon pail
HEEL GROUNDERS AND HEEL STRAPS Product #ACL 10R-1: Sealer/Primer: Gallon pail #4700-SS
Product #ACL 10R-5: Sealer/Primer: 5-gallon pail
Product #8095: Grounding Strips: 2” x 12” (1.4 mil thickness)

6700 ESD VINYL PAINT PLUS
This water-based acrylic vinyl coating is available in dissipative or conductive resistances. Suitable for
interior concrete floors, walls, and metal and wood surfaces. Color options allow for demarcating ESD
work areas and for specific applications. Made in the USA.

» Various colors available with flat matte finish
Static dissipative: 10 –10 ohms when tested according to ANSI/ESD STM7.1
8
5
» Static conductive: 10 –10 ohms when tested according to ANSI/ESD STM7.1
6
3
» Appropriate for facilities following ANSI/ESD S20.20 (800) 782-8420 (847) 981-9212 www.aclstaticide.com
Product #6700: Gallon pail
Product #6700: 5-gallon pail
See website for colors and part numbers
#6700

NEUTRAL CLEANERS
These anti-static cleaners are low-foaming and produce constant detergency. They can be used in
all facilities, as they leave no film or streaks, and are safe for septic and sewage systems. Anti-static
properties of the production environment will not be degraded with these non-abrasive cleaners. Made
in the USA.

» For use on concrete, ESD tile, and painted floors
Ideal for maintaining ESD paint
» Available in concentrate and ready-to-use
Neutral Cleaner Concentrate - Dilution ratio: 1:128 (1 part cleaner to 128 parts water)
Product #4020-1: Gallon bottle / 4 gallons per case
Product #4020-5: 5-gallon pail
Product #4020-2: 54-gallon drum

Neutral Cleaner Ready-to Use
Product #4030-1: Gallon bottle / 4 gallons per case
Product #4030-5: 5-gallon pail #4020 / #4030
Product #4030-2: 54-gallon drum
15
