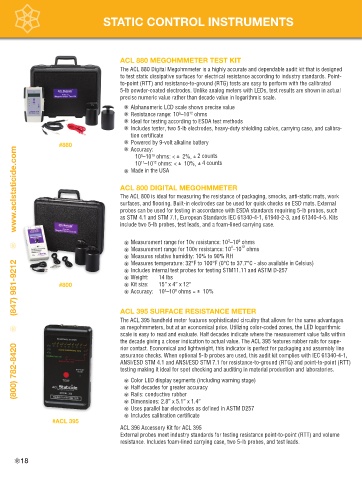

P. 18
STATIC CONTROL INSTRUMENTS
ACL 880 MEGOHMMETER TEST KIT
The ACL 880 Digital Megohmmeter is a highly accurate and dependable audit kit that is designed
to test static dissipative surfaces for electrical resistance according to industry standards. Point-
to-point (RTT) and resistance-to-ground (RTG) tests are easy to perform with the calibrated
5-lb powder-coated electrodes. Unlike analog meters with LEDs, test results are shown in actual
precise numeric value rather than decade value in logarithmic scale.
» Alphanumeric LCD scale shows precise value
» Resistance range: 10 –10 ohms
3
12
» Ideal for testing according to ESDA test methods
» Includes tester, two 5-lb electrodes, heavy-duty shielding cables, carrying case, and calibra-
tion certificate
#880 » Powered by 9-volt alkaline battery
» Accuracy:
(800) 782-8420 (847) 981-9212 www.aclstaticide.com
» 10 –10 ohms: < ± 2%, ± 2 counts
3
10
» 10 –10 ohms: < ± 10%, ± 4 counts
12
11
» Made in the USA
ACL 800 DIGITAL MEGOHMMETER
The ACL 800 is ideal for measuring the resistance of packaging, smocks, anti-static mats, work
surfaces, and flooring. Built-in electrodes can be used for quick checks on ESD mats. External
probes can be used for testing in accordance with ESDA standards requiring 5-lb probes, such
as STM 4.1 and STM 7.1, European Standards IEC 61340-4-1, 61940-2-3, and 61340-4-5. Kits
include two 5-lb probes, test leads, and a foam-lined carrying case.
» Measurement range for 10v resistance: 10 –10 ohms
3
6
4
12
» Measurement range for 100v resistance: 10 –10 ohms
» Measures relative humidity: 10% to 90% RH
» Measures temperature: 32°F to 100°F (0°C to 37.7°C - also available in Celsius)
» Includes internal test probes for testing STM11.11 and ASTM D-257
» Weight: 14 lbs
#800 » Kit size: 15” x 4” x 12”
» Accuracy: 10 –10 ohms = ± 10%
8
3
ACL 395 SURFACE RESISTANCE METER
The ACL 395 handheld meter features sophisticated circuitry that allows for the same advantages
as megohmmeters, but at an economical price. Utilizing color-coded zones, the LED logarithmic
scale is easy to read and evaluate. Half decades indicate where the measurement value falls within
the decade giving a closer indication to actual value. The ACL 395 features rubber rails for supe-
rior contact. Economical and lightweight, this indicator is perfect for packaging and assembly line
assurance checks. When optional 5-lb probes are used, this audit kit complies with IEC 61340-4-1,
ANSI/ESD STM 4.1 and ANSI/ESD STM 7.1 for resistance-to-ground (RTG) and point-to-point (RTT)
testing making it ideal for spot checking and auditing in material production and laboratories.
» Color LED display segments (including warning stage)
» Half decades for greater accuracy
» Rails: conductive rubber
» Dimensions: 2.8” x 5.1” x 1.4”
» Uses parallel bar electrodes as defined in ASTM D257
» Includes calibration certificate
#ACL 395
ACL 396 Accessory Kit for ACL 395
External probes meet industry standards for testing resistance point-to-point (RTT) and volume
resistance. Includes foam-lined carrying case, two 5-lb probes, and test leads.
18
