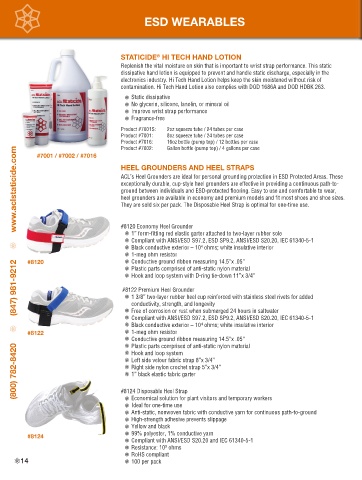

Page 14 - ACL Staticide catalogue

ESD WEARABLES

STATICIDE HI TECH HAND LOTION
®
Replenish the vital moisture on skin that is important to wrist strap performance. This static
dissipative hand lotion is equipped to prevent and handle static discharge, especially in the
electronics industry. Hi Tech Hand Lotion helps keep the skin moistened without risk of
contamination. Hi Tech Hand Lotion also complies with DOD 1686A and DOD HDBK 263.
» Static dissipative
» No glycerin, silicone, lanolin, or mineral oil
» Improve wrist strap performance
» Fragrance-free

Product #7001S: 2oz squeeze tube / 24 tubes per case
Product #7001: 8oz squeeze tube / 24 tubes per case
Product #7016: 16oz bottle (pump top) / 12 bottles per case
Product #7002: Gallon bottle (pump top) / 4 gallons per case
(800) 782-8420 (847) 981-9212 www.aclstaticide.com
#7001 / #7002 / #7016
HEEL GROUNDERS AND HEEL STRAPS
ACL’s Heel Grounders are ideal for personal grounding protection in ESD Protected Areas. These
exceptionally durable, cup-style heel grounders are effective in providing a continuous path-to-
ground between individuals and ESD-protected flooring. Easy to use and comfortable to wear,
heel grounders are available in economy and premium models and fit most shoes and shoe sizes.
They are sold six per pack. The Disposable Heel Strap is optimal for one-time use.

#8120 Economy Heel Grounder
» 1” form-fitting red elastic garter attached to two-layer rubber sole
» Compliant with ANSI/ESD S97.2, ESD SP9.2, ANSI/ESD S20.20, IEC 61340-5-1
» Black conductive exterior – 10 ohms; white insulative interior
4
» 1-meg ohm resistor
#8120 » Conductive ground ribbon measuring 14.5”x .05”
» Plastic parts comprised of anti-static nylon material
» Hook and loop system with D-ring tie-down 11”x 3/4”

#8122 Premium Heel Grounder
» 1 3/8” two-layer rubber heel cup reinforced with stainless steel rivets for added
conductivity, strength, and longevity
» Free of corrosion or rust when submerged 24 hours in saltwater
» Compliant with ANSI/ESD S97.2, ESD SP9.2, ANSI/ESD S20.20, IEC 61340-5-1
» Black conductive exterior – 10 ohms; white insulative interior
4
#8122 » 1-meg ohm resistor
» Conductive ground ribbon measuring 14.5”x .05”
» Plastic parts comprised of anti-static nylon material
» Hook and loop system
» Left side velour fabric strap 8”x 3/4”
» Right side nylon crochet strap 5”x 3/4”
» 1” black elastic fabric garter

#8124 Disposable Heel Strap
Economical solution for plant visitors and temporary workers
Ideal for one-time use
» Anti-static, nonwoven fabric with conductive yarn for continuous path-to-ground
» High-strength adhesive prevents slippage
» Yellow and black
» 99% polyester, 1% conductive yarn
#8124
» Compliant with ANSI/ESD S20.20 and IEC 61340-5-1
» Resistance: 10 ohms
5
» RoHS compliant
14 » 100 per pack
