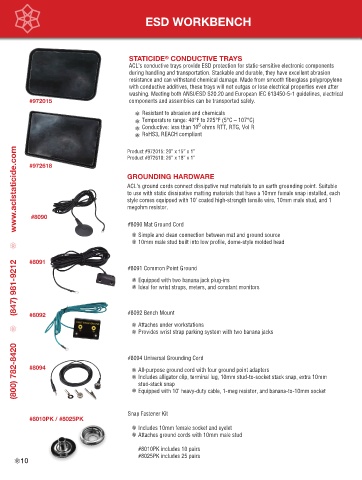

Page 10 - ACL Staticide catalogue

ESD WORKBENCH

STATICIDE CONDUCTIVE TRAYS
®
ACL’s conductive trays provide ESD protection for static-sensitive electronic components
during handling and transportation. Stackable and durable, they have excellent abrasion
resistance and can withstand chemical damage. Made from smooth fiberglass polypropylene
with conductive additives, these trays will not outgas or lose electrical properties even after
washing. Meeting both ANSI/ESD S20.20 and European IEC 613450-5-1 guidelines, electrical
#972015 components and assemblies can be transported safely.

» Resistant to abrasion and chemicals
» Temperature range: 40°F to 225°F (5°C – 107°C)
6
» Conductive: less than 10 ohms RTT, RTG, Vol R
» RoHS3, REACH compliant

(800) 782-8420 (847) 981-9212 www.aclstaticide.com
Product #972015: 20” x 15” x 1”
Product #972618: 26” x 18” x 1”
#972618
GROUNDING HARDWARE

ACL’s ground cords connect dissipative mat materials to an earth grounding point. Suitable
to use with static dissipative matting materials that have a 10mm female snap installed, each
style comes equipped with 10’ coated high-strength tensile wire, 10mm male stud, and 1
megohm resistor.
#8090
#8090 Mat Ground Cord
» Simple and clean connection between mat and ground source
» 10mm male stud built into low profile, dome-style molded head

#8091
#8091 Common Point Ground

» Equipped with two banana jack plug-ins
» Ideal for wrist straps, meters, and constant monitors

#8092 #8092 Bench Mount
» Attaches under workstations
» Provides wrist strap parking system with two banana jacks

#8094 Universal Grounding Cord
#8094 » All-purpose ground cord with four ground point adapters
» Includes alligator clip, terminal lug, 10mm stud-to-socket stack snap, extra 10mm
stud-stack snap
» Equipped with 10’ heavy-duty cable, 1-meg resistor, and banana-to-10mm socket

Snap Fastener Kit
#8010PK / #8025PK
» Includes 10mm female socket and eyelet

» Attaches ground cords with 10mm male stud

#8010PK includes 10 pairs
#8025PK includes 25 pairs
