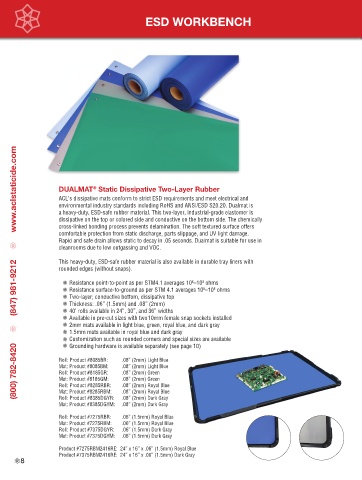

Page 8 - ACL Staticide catalogue

ESD WORKBENCH

(800) 782-8420 (847) 981-9212 www.aclstaticide.com

DUALMAT Static Dissipative Two-Layer Rubber
®
ACL’s dissipative mats conform to strict ESD requirements and meet electrical and
environmental industry standards including RoHS and ANSI/ESD S20.20. Dualmat is
a heavy-duty, ESD-safe rubber material. This two-layer, industrial-grade elastomer is
dissipative on the top or colored side and conductive on the bottom side. The chemically
cross-linked bonding process prevents delamination. The soft textured surface offers
comfortable protection from static discharge, parts slippage, and UV light damage.
Rapid and safe drain allows static to decay in .05 seconds. Dualmat is suitable for use in
cleanrooms due to low outgassing and VOC.

This heavy-duty, ESD-safe rubber material is also available in durable tray liners with
rounded edges (without snaps).

» Resistance point-to-point as per STM4.1 averages 10 –10 ohms
6
8
» Resistance surface-to-ground as per STM 4.1 averages 10 –10 ohms
6
8
» Two-layer; conductive bottom, dissipative top
» Thickness: .06” (1.5mm) and .08” (2mm)
» 40’ rolls available in 24”, 30”, and 36” widths
» Available in pre-cut sizes with two 10mm female snap sockets installed
» 2mm mats available in light blue, green, royal blue, and dark gray
» 1.5mm mats available in royal blue and dark gray
» Customization such as rounded corners and special sizes are available
» Grounding hardware is available separately (see page 10)

Roll: Product #8085BR: .08” (2mm) Light Blue
Mat: Product #8085BM: .08” (2mm) Light Blue
Roll: Product #8185GR: .08” (2mm) Green
Mat: Product #8185GM: .08” (2mm) Green
Roll: Product #8285RBR: .08” (2mm) Royal Blue
Mat: Product #8285RBM: .08” (2mm) Royal Blue
Roll: Product #8385DGYR: .08” (2mm) Dark Gray
Mat: Product #8385DGYM: .08” (2mm) Dark Gray

Roll: Product #7275RBR: .06” (1.5mm) Royal Blue
Mat: Product #7275RBM: .06” (1.5mm) Royal Blue
Roll: Product #7375DGYR: .06” (1.5mm) Dark Gray
Mat: Product #7375DGYM: .06” (1.5mm) Dark Gray

Product #7275RBM2416RE: 24” x 16” x .06” (1.5mm) Royal Blue
Product #7375RBM2416RE: 24” x 16” x .06” (1.5mm) Dark Gray
