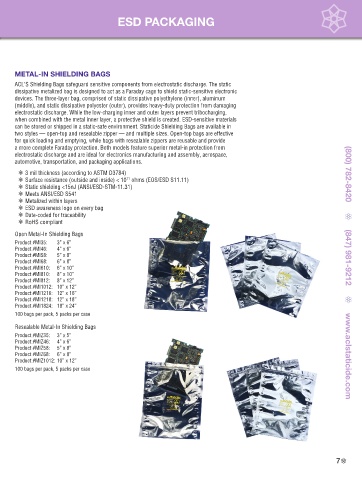

Page 7 - ACL Staticide catalogue

ESD PACKAGING

METAL-IN SHIELDING BAGS
ACL’S Shielding Bags safeguard sensitive components from electrostatic discharge. The static
dissipative metalized bag is designed to act as a Faraday cage to shield static-sensitive electronic
devices. The three-layer bag, comprised of static dissipative polyethylene (inner), aluminum
(middle), and static dissipative polyester (outer), provides heavy-duty protection from damaging
electrostatic discharge. While the low-charging inner and outer layers prevent tribocharging,
when combined with the metal inner layer, a protective shield is created. ESD-sensitive materials
can be stored or shipped in a static-safe environment. Staticide Shielding Bags are available in
two styles — open-top and resealable zipper — and multiple sizes. Open-top bags are effective
for quick loading and emptying, while bags with resealable zippers are reusable and provide
a more complete Faraday protection. Both models feature superior metal-in protection from
electrostatic discharge and are ideal for electronics manufacturing and assembly, aerospace,
automotive, transportation, and packaging applications.
» 3 mil thickness (according to ASTM D3784)
» Surface resistance (outside and inside) < 10 ohms (EOS/ESD S11.11)
11
» Static shielding <15nJ (ANSI/ESD-STM-11.31)
» Meets ANSI/ESD S541
» Metalized within layers
» ESD awareness logo on every bag
» Date-coded for traceability
» RoHS compliant

Open Metal-In Shielding Bags
Product #MI35: 3” x 6”
Product #MI46: 4” x 6”
Product #MI58: 5” x 8”
Product #MI68: 6” x 8”
Product #MI610: 6” x 10”
Product #MI810: 8” x 10” (800) 782-8420 (847) 981-9212 www.aclstaticide.com
Product #MI812: 8” x 12”
Product #MI1012: 10” x 12”
Product #MI1216: 12” x 16”
Product #MI1218: 12” x 18”
Product #MI1824: 18” x 24”
100 bags per pack, 5 packs per case

Resealable Metal-In Shielding Bags
Product #MIZ35: 3” x 5”
Product #MIZ46: 4” x 6”
Product #MIZ58: 5” x 8”
Product #MIZ68: 6” x 8”
Product #MIZ1012: 10” x 12”
100 bags per pack, 5 packs per case
