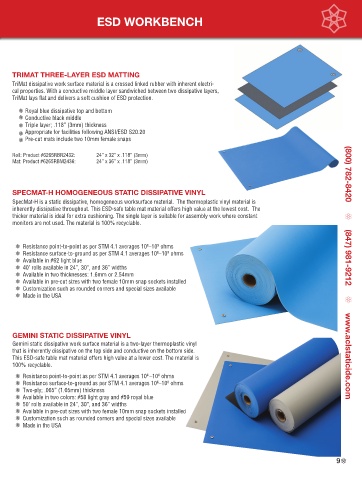

Page 9 - ACL Staticide catalogue

ESD WORKBENCH

TRIMAT THREE-LAYER ESD MATTING
TriMat dissipative work surface material is a crossed linked rubber with inherent electri-
cal properties. With a conductive middle layer sandwiched between two dissipative layers,
TriMat lays flat and delivers a soft cushion of ESD protection.

» Royal blue dissipative top and bottom
» Conductive black middle
» Triple layer; .118” (3mm) thickness
» Appropriate for facilities following ANSI/ESD S20.20
» Pre-cut mats include two 10mm female snaps

Roll: Product #6265RBR2432: 24” x 32” x .118” (3mm)
Mat: Product #6265RBM2436: 24” x 36” x .118” (3mm)

SPECMAT-H HOMOGENEOUS STATIC DISSIPATIVE VINYL
SpecMat-H is a static dissipative, homogeneous worksurface material. The thermoplastic vinyl material is
inherently dissipative throughout. This ESD-safe table mat material offers high value at the lowest cost. The
thicker material is ideal for extra cushioning. The single layer is suitable for assembly work where constant
monitors are not used. The material is 100% recyclable.

» Resistance point-to-point as per STM 4.1 averages 10 –10 ohms
9
8
» Resistance surface-to-ground as per STM 4.1 averages 10 –10 ohms
8
9
» Available in #62 light blue
» 40’ rolls available in 24”, 30”, and 36” widths
» Available in two thicknesses: 1.6mm or 2.54mm (800) 782-8420 (847) 981-9212 www.aclstaticide.com
» Available in pre-cut sizes with two female 10mm snap sockets installed
» Customization such as rounded corners and special sizes available
» Made in the USA

GEMINI STATIC DISSIPATIVE VINYL
Gemini static dissipative work surface material is a two-layer thermoplastic vinyl
that is inherently dissipative on the top side and conductive on the bottom side.
This ESD-safe table mat material offers high value at a lower cost. The material is
100% recyclable.
» Resistance point-to-point as per STM 4.1 averages 10 –10 ohms
6
8
» Resistance surface-to-ground as per STM 4.1 averages 10 –10 ohms
6
8
» Two-ply; .065” (1.65mm) thickness
» Available in two colors: #58 light gray and #59 royal blue
» 50’ rolls available in 24”, 30”, and 36” widths
» Available in pre-cut sizes with two female 10mm snap sockets installed
» Customization such as rounded corners and special sizes available
» Made in the USA
