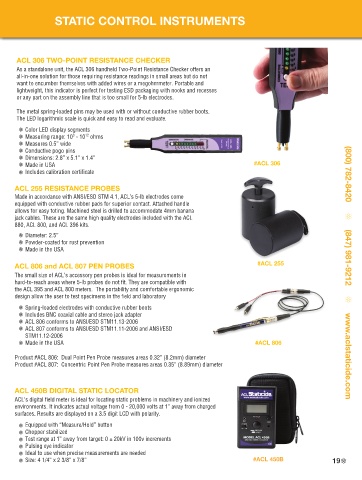

STATIC CONTROL INSTRUMENTS

ACL 306 TWO-POINT RESISTANCE CHECKER
As a standalone unit, the ACL 306 handheld Two-Point Resistance Checker offers an
all-in-one solution for those requiring resistance readings in small areas but do not
want to encumber themselves with added wires or a megohmmeter. Portable and
lightweight, this indicator is perfect for testing ESD packaging with nooks and recesses
or any part on the assembly line that is too small for 5-lb electrodes.

The metal spring-loaded pins may be used with or without conductive rubber boots.
The LED logarithmic scale is quick and easy to read and evaluate.

» Color LED display segments
» Measuring range: 10 - 10 ohms
12
3
» Measures 0.5” wide
» Conductive pogo pins
» Dimensions: 2.8” x 5.1” x 1.4”
» Made in USA #ACL 306
» Includes calibration certificate

ACL 255 RESISTANCE PROBES
Made in accordance with ANSI/ESD STM 4.1, ACL’s 5-lb electrodes come
equipped with conductive rubber pads for superior contact. Attached handle
allows for easy toting. Machined steel is drilled to accommodate 4mm banana
jack cables. These are the same high quality electrodes included with the ACL
880, ACL 800, and ACL 396 kits.
» Diameter: 2.5”
» Powder-coated for rust prevention
» Made in the USA

ACL 806 and ACL 807 PEN PROBES #ACL 255
The small size of ACL’s accessory pen probes is ideal for measurements in (800) 782-8420 (847) 981-9212 www.aclstaticide.com
hard-to-reach areas where 5-lb probes do not fit. They are compatible with
the ACL 395 and ACL 800 meters. The portability and comfortable ergonomic
design allow the user to test specimens in the field and laboratory

» Spring-loaded electrodes with conductive rubber boots
» Includes BNC coaxial cable and stereo jack adapter
» ACL 806 conforms to ANSI/ESD STM11.13-2006
» ACL 807 conforms to ANSI/ESD STM11.11-2006 and ANSI/ESD
STM11.12-2006
» Made in the USA #ACL 806

Product #ACL 806: Dual Point Pen Probe measures areas 0.32” (8.2mm) diameter
Product #ACL 807: Concentric Point Pen Probe measures areas 0.35” (8.89mm) diameter

ACL 450B DIGITAL STATIC LOCATOR
ACL’s digital field meter is ideal for locating static problems in machinery and ionized
environments. It indicates actual voltage from 0 - 20,000 volts at 1” away from charged
surfaces. Results are displayed on a 3.5 digit LCD with polarity.

» Equipped with “Measure/Hold” button
» Chopper stabilized
» Test range at 1” away from target: 0 ± 20kV in 100v increments
» Pulsing eye indicator
» Ideal to use when precise measurements are needed
» Size: 4 1/4” x 2 3/8” x 7/8” #ACL 450B 19
