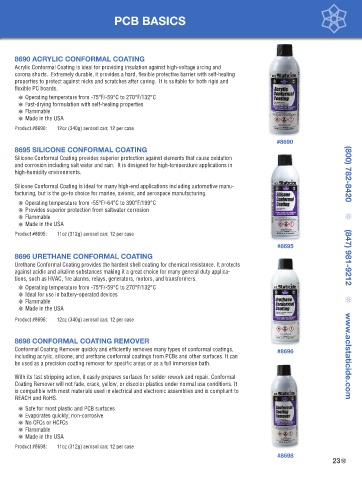

Page 23 - ACL Staticide catalogue

PCB BASICS

8620 ACL FLUX REMOVER HEAVY DUTY 8690 ACRYLIC CONFORMAL COATING
Acrylic Conformal Coating is ideal for providing insulation against high-voltage arcing and
corona shorts. Extremely durable, it provides a hard, flexible protective barrier with self-healing
properties to protect against nicks and scratches after curing. It is suitable for both rigid and
flexible PC boards.
» Operating temperature from -75°F/-59°C to 270°F/132°C
» Fast-drying formulation with self-healing properties
» Flammable
» Made in the USA
Product #8690: 12oz (340g) aerosol can; 12 per case

#8690
8695 SILICONE CONFORMAL COATING
Silicone Conformal Coating provides superior protection against elements that cause oxidation
and corrosion including salt water and rain. It is designed for high-temperature applications in
high-humidity environments.
8621 ACL FLUX REMOVER ROSIN
Silicone Conformal Coating is ideal for many high-end applications including automotive manu-
facturing, but is the go-to choice for marine, avionic, and aerospace manufacturing.
» Operating temperature from -55°F/-64°C to 390°F/199°C
» Provides superior protection from saltwater corrosion
» Flammable
» Made in the USA
Product #8695: 11oz (312g) aerosol can; 12 per case

#8695
8696 URETHANE CONFORMAL COATING
Urethane Conformal Coating provides the hardest shell coating for chemical resistance. It protects
against acidic and alkaline substances making it a great choice for many general duty applica- (800) 782-8420 (847) 981-9212 www.aclstaticide.com
8623 ACL FLUX REMOVER NO CLEAN tions, such as HVAC, fire alarms, relays, generators, motors, and transformers.
» Operating temperature from -75°F/-59°C to 270°F/132°C
» Ideal for use in battery-operated devices
» Flammable
» Made in the USA
Product #8696: 12oz (340g) aerosol can; 12 per case

8698 CONFORMAL COATING REMOVER
Conformal Coating Remover quickly and efficiently removes many types of conformal coatings, #8696
including acrylic, silicone, and urethane conformal coatings from PCBs and other surfaces. It can
8624 A4 ALL PURPOSE FLUX REMOVER AND CLEANER be used as a precision coating remover for specific areas or as a full immersion bath.
With its fast stripping action, it easily prepares surfaces for solder rework and repair. Conformal
Coating Remover will not fade, crack, yellow, or discolor plastics under normal use conditions. It
is compatible with most materials used in electrical and electronic assemblies and is compliant to
REACH and RoHS.
» Safe for most plastic and PCB surfaces
» Evaporates quickly; non-corrosive
» No CFCs or HCFCs
» Flammable
» Made in the USA
Product #8698: 11oz (312g) aerosol can; 12 per case
#8698
23
