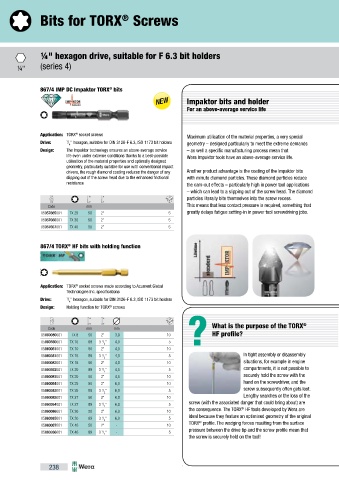

Page 242 - WERA katalógus

Bits for TORX Screws
®

¼" hexagon drive, suitable for F 6.3 bit holders

¼" (series 4)

867/4 IMP DC Impaktor TORX bits
®
Impaktor bits and holder
For an above-average service life

Application: TORX socket screws Maximum utilisation of the material properties, a very special
®
Drive: 1 / " hexagon, suitable for DIN 3126-F 6.3, ISO 1173 bit holders geometry – designed particularly to meet the extreme demands
4
Design: The Impaktor technology ensures an above-average service – as well a specifi c manufacturing process mean that
life even under extreme conditions thanks to a best-possible Wera Impaktor tools have an above-average service life.
utilisation of the material properties and optimally designed
geometry, particularly suitable for use with conventional impact
drivers, the rough diamond coating reduces the danger of any Another product advantage is the coating of the Impaktor bits
slipping out of the screw head due to the enhanced frictional with minute diamond particles. These diamond particles reduce
resistance the cam-out eff ects – particularly high in power tool applications
– which can lead to a slipping out of the screw head. The diamond
particles literally bite themselves into the screw recess.
Code mm This means that less contact pressure is required, something that
05057665001 TX 25 50 2" 5 greatly delays fatigue setting-in in power tool screwdriving jobs.
05057666001 TX 30 50 2" 5
05057667001 TX 40 50 2" 5

®
867/4 TORX HF bits with holding function

Application: TORX socket screws made according to Acument Global
®
Technologies Inc. specifi cations
Drive: 1 / " hexagon, suitable for DIN 3126-F 6.3, ISO 1173 bit holders
4
®
Design: Holding function for TORX screws
? What is the purpose of the TORX
®
Code mm mm
05060080001 TX 8 50 2" 3,0 10 HF profi le?
05060360001 TX 10 89 3 / " 4,0 5
1
2
05060081001 TX 10 50 2" 4,0 10
1
05060361001 TX 15 89 3 / " 4,0 5 In tight assembly or disassembly
2
05060082001 TX 15 50 2" 4,0 10 situations, for example in engine
1
05060362001 TX 20 89 3 / " 4,5 5 compartments, it is not possible to
2
05060083001 TX 20 50 2" 4,5 10 securely hold the screw with the
05060084001 TX 25 50 2" 6,0 10 hand on the screwdriver, and the
screw subsequently often gets lost.
1
05060363001 TX 25 89 3 / " 6,0 5
2
05060085001 TX 27 50 2" 6,0 10 Lengthy searches or the loss of the
screw (with the associated danger that could bring about) are
1
05060364001 TX 27 89 3 / " 6,0 5
2 the consequence. The TORX HF tools developed by Wera are
®
05060086001 TX 30 50 2" 6,0 10
05060365001 TX 30 89 3 / " 6,0 5 ideal because they feature an optimised geometry of the original
1
2
®
05060087001 TX 40 50 2" - 10 TORX profi le. The wedging forces resulting from the surface
pressure between the drive tip and the screw profi le mean that
05060366001 TX 40 89 3 / " - 5
1
2 the screw is securely held on the tool!
