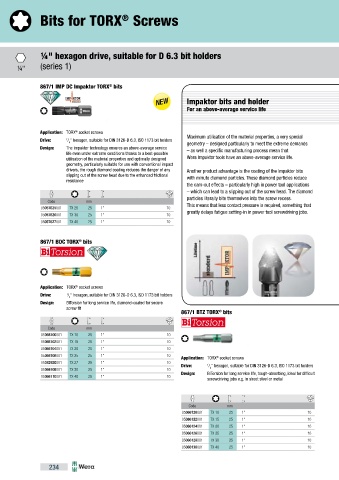

Page 238 - WERA katalógus

Bits for TORX Screws
®

¼" hexagon drive, suitable for D 6.3 bit holders

¼" (series 1)

®
867/1 IMP DC Impaktor TORX bits
Impaktor bits and holder
For an above-average service life

Application: TORX socket screws
®
Maximum utilisation of the material properties, a very special
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4 geometry – designed particularly to meet the extreme demands
Design: The Impaktor technology ensures an above-average service – as well a specifi c manufacturing process mean that
life even under extreme conditions thanks to a best-possible
utilisation of the material properties and optimally designed Wera Impaktor tools have an above-average service life.
geometry, particularly suitable for use with conventional impact
drivers, the rough diamond coating reduces the danger of any Another product advantage is the coating of the Impaktor bits
slipping out of the screw head due to the enhanced frictional with minute diamond particles. These diamond particles reduce
resistance
the cam-out eff ects – particularly high in power tool applications
– which can lead to a slipping out of the screw head. The diamond
particles literally bite themselves into the screw recess.
Code mm This means that less contact pressure is required, something that
05057625001 TX 25 25 1" 10
greatly delays fatigue setting-in in power tool screwdriving jobs.
05057626001 TX 30 25 1" 10
05057627001 TX 40 25 1" 10

867/1 BDC TORX bits
®

Application: TORX socket screws
®
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4
Design: BiTorsion for long service life, diamond-coated for secure
screw fi t
867/1 BTZ TORX bits
®

Code mm
05066100001 TX 10 25 1" 10
05066102001 TX 15 25 1" 10
05066104001 TX 20 25 1" 10
05066106001 TX 25 25 1" 10 ®
Application: TORX socket screws
05342920001 TX 27 25 1" 10
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
05066108001 TX 30 25 1" 10 4
Design: BiTorsion for long service life, tough-absorbing, ideal for diffi cult
05066110001 TX 40 25 1" 10
screwdriving jobs e.g. in sheet steel or metal

Code mm
05066120001 TX 10 25 1" 10
05066122001 TX 15 25 1" 10
05066124001 TX 20 25 1" 10
05066126001 TX 25 25 1" 10
05066128001 TX 30 25 1" 10
05066130001 TX 40 25 1" 10

234
