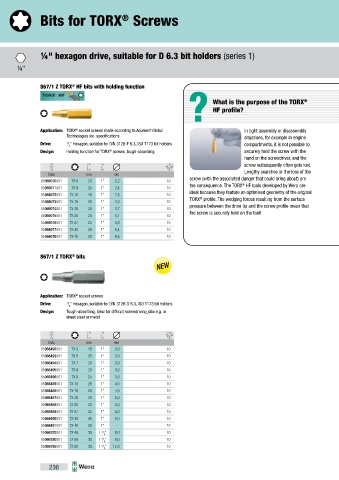

Page 240 - WERA katalógus

Bits for TORX Screws
®

¼" hexagon drive, suitable for D 6.3 bit holders (series 1)

¼"

? What is the purpose of the TORX
867/1 Z TORX HF bits with holding function
®
®
HF profi le?

Application: TORX socket screws made according to Acument Global In tight assembly or disassembly
®
Technologies Inc. specifi cations situations, for example in engine
Drive: 1 / " hexagon, suitable for DIN 3126-F 6.3, ISO 1173 bit holders compartments, it is not possible to
4
Design: Holding function for TORX screws, tough-absorbing securely hold the screw with the
®
hand on the screwdriver, and the
screw subsequently often gets lost.
Lengthy searches or the loss of the
Code mm mm
05066070001 TX 8 25 1" 2,2 10 screw (with the associated danger that could bring about) are
®
05066071001 TX 9 25 1" 2,4 10 the consequence. The TORX HF tools developed by Wera are
05066072001 TX 10 25 1" 2,5 10 ideal because they feature an optimised geometry of the original
®
TORX profi le. The wedging forces resulting from the surface
05066073001 TX 15 25 1" 3,0 10
pressure between the drive tip and the screw profi le mean that
05066074001 TX 20 25 1" 3,7 10
the screw is securely held on the tool!
05066075001 TX 25 25 1" 4,1 10
05066076001 TX 27 25 1" 4,8 10
05066077001 TX 30 25 1" 5,4 10
05066078001 TX 40 25 1" 6,5 10

867/1 Z TORX bits
®

Application: TORX socket screws
®
Drive: 1 / " hexagon, suitable for DIN 3126-D 6.3, ISO 1173 bit holders
4
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in
sheet steel or metal

Code mm mm
05066492001 TX 5 25 1" 3,0 10
05066493001 TX 6 25 1" 3,0 10
05066494001 TX 7 25 1" 3,0 10
05066495001 TX 8 25 1" 3,0 10
05066496001 TX 9 25 1" 3,0 10
05066485001 TX 10 25 1" 4,0 10
05066486001 TX 15 25 1" 4,0 10
05066487001 TX 20 25 1" 5,0 10
05066488001 TX 25 25 1" 5,0 10
05066489001 TX 27 25 1" 6,0 10
05066490001 TX 30 25 1" 6,0 10
05066491001 TX 40 25 1" - 10
05066325001 TX 45 35 1 / " 8,0 10
3
8
05066330001 TX 50 35 1 / " 9,0 10
3
8
05066335001 TX 55 35 1 / " 12,0 10
3
8

236
