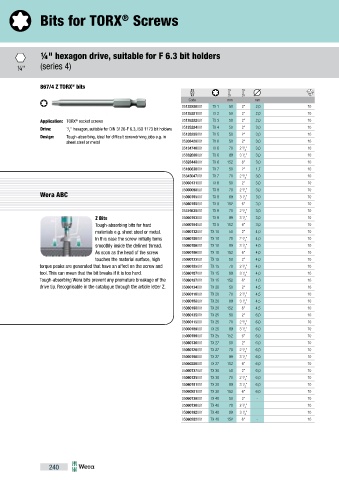

Page 244 - WERA katalógus

Bits for TORX Screws
®

¼" hexagon drive, suitable for F 6.3 bit holders

¼" (series 4)

867/4 Z TORX bits
®
Code mm mm
05135200001 TX 1 50 2" 2,0 10
05135201001 TX 2 50 2" 2,0 10
®
Application: TORX socket screws 05135202001 TX 3 50 2" 2,0 10
Drive: 1 / " hexagon, suitable for DIN 3126-F 6.3, ISO 1173 bit holders 05135204001 TX 4 50 2" 3,0 10
4
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in 05135205001 TX 5 50 2" 3,0 10
sheet steel or metal 05308428001 TX 6 50 2" 3,0 10
05134740001 TX 6 70 2 / " 3,0 10
3
4
05332600001 TX 6 89 3 / " 3,0 10
1
2
05328448001 TX 6 152 6" 3,0 10
05160830001 TX 7 50 2" 1,7 10
05345047001 TX 7 70 2 / " 3,0 10
3
4
05060131001 TX 8 50 2" 3,0 10
3
05060098001 TX 8 70 2 / " 3,0 10
Wera ABC 05060185001 TX 8 89 3 / " 3,0 10
4
1
2
05060195001 TX 8 152 6" 3,0 10
05319835001 TX 9 70 2 / " 3,0 10
3
4
Z Bits 05060193001 TX 9 89 3 / " 3,0 10
1
2
Tough-absorbing bits for hard 05060194001 TX 9 152 6" 3,0 10
materials e.g. sheet steel or metal. 05060132001 TX 10 50 2" 4,0 10
In this case the screw initially turns 05060100001 TX 10 70 2 / " 4,0 10
3
4
smoothly inside the defi ned thread. 05060186001 TX 10 89 3 / " 4,0 10
1
2
As soon as the head of the screw 05060196001 TX 10 152 6" 4,0 10
touches the material surface, high 05060133001 TX 15 50 2" 4,0 10
torque peaks are generated that have an aff ect on the screw and 05060105001 TX 15 70 2 / " 4,0 10
3
4
tool. This can mean that the bit breaks if it is too hard. 05060187001 TX 15 89 3 / " 4,0 10
1
2
Tough-absorbing Wera bits prevent any premature breakage of the 05060197001 TX 15 152 6" 4,0 10
drive tip. Recognisable in the catalogue through the article letter Z. 05060134001 TX 20 50 2" 4,5 10
3
05060110001 TX 20 70 2 / " 4,5 10
4
1
05060188001 TX 20 89 3 / " 4,5 10
2
05060198001 TX 20 152 6" 4,5 10
05060135001 TX 25 50 2" 6,0 10
05060115001 TX 25 70 2 / " 6,0 10
3
4
05060189001 TX 25 89 3 / " 6,0 10
1
2
05060199001 TX 25 152 6" 6,0 10
05060136001 TX 27 50 2" 6,0 10
05060120001 TX 27 70 2 / " 6,0 10
3
4
05060190001 TX 27 89 3 / " 6,0 10
1
2
05060200001 TX 27 152 6" 6,0 10
05060137001 TX 30 50 2" 6,0 10
3
05060125001 TX 30 70 2 / " 6,0 10
4
05060191001 TX 30 89 3 / " 6,0 10
1
2
05060201001 TX 30 152 6" 6,0 10
05060138001 TX 40 50 2" - 10
3
05060130001 TX 40 70 2 / " - 10
4
05060192001 TX 40 89 3 / " - 10
1
2
05060202001 TX 40 152 6" - 10
