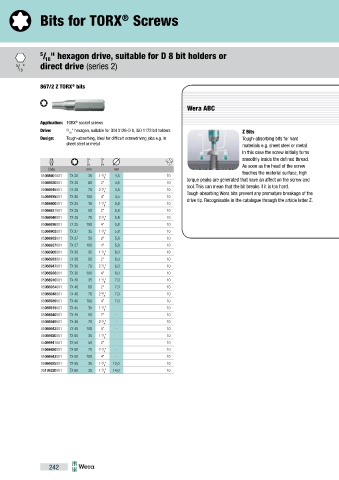

Bits for TORX Screws
®

5 / " hexagon drive, suitable for D 8 bit holders or
16
5 / " direct drive (series 2)
16

®
867/2 Z TORX bits

Wera ABC

Application: TORX socket screws
®
Drive: 5 / " hexagon, suitable for DIN 3126-D 8, ISO 1173 bit holders Z Bits
16
Design: Tough-absorbing, ideal for diffi cult screwdriving jobs e.g. in Tough-absorbing bits for hard
sheet steel or metal materials e.g. sheet steel or metal.
In this case the screw initially turns
smoothly inside the defi ned thread.
As soon as the head of the screw
Code mm mm
touches the material surface, high
3
05066901001 TX 20 35 1 / " 4,5 10 torque peaks are generated that have an aff ect on the screw and
8
05066930001 TX 20 50 2" 4,5 10 tool. This can mean that the bit breaks if it is too hard.
05066945001 TX 20 70 2 / " 4,5 10 Tough-absorbing Wera bits prevent any premature breakage of the
3
4
05066935001 TX 20 100 4" 4,5 10
drive tip. Recognisable in the catalogue through the article letter Z.
05066900001 TX 25 35 1 / " 5,8 10
3
8
05066931001 TX 25 50 2" 5,8 10
05066946001 TX 25 70 2 / " 5,8 10
3
4
05066936001 TX 25 100 4" 5,8 10
05066902001 TX 27 35 1 / " 5,8 10
3
8
05066932001 TX 27 50 2" 5,8 10
05066937001 TX 27 100 4" 5,8 10
05066905001 TX 30 35 1 / " 6,0 10
3
8
05066933001 TX 30 50 2" 6,0 10
05066947001 TX 30 70 2 / " 6,0 10
3
4
05066938001 TX 30 100 4" 6,0 10
3
05066910001 TX 40 35 1 / " 7,0 10
8
05066934001 TX 40 50 2" 7,0 10
05066948001 TX 40 70 2 / " 7,0 10
3
4
05066939001 TX 40 100 4" 7,0 10
05066915001 TX 45 35 1 / " - 10
3
8
05066940001 TX 45 50 2" - 10
3
05066949001 TX 45 70 2 / " - 10
4
05066942001 TX 45 100 4" - 10
05066920001 TX 50 35 1 / " - 10
3
8
05066941001 TX 50 50 2" - 10
05066950001 TX 50 70 2 / " - 10
3
4
05066943001 TX 50 100 4" - 10
05066925001 TX 55 35 1 / " 12,0 10
3
8
05136220001 TX 60 35 1 / " 14,0 10
3
8
