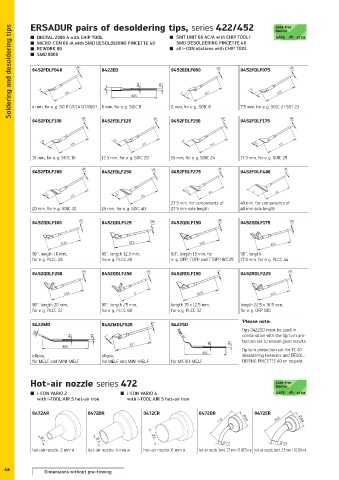

Soldering and desoldering tips ERSADUR pairs of desoldering tips, series 422/452

SMT UNIT 60 AC/A with CHIP TOOL/
DIGITAL 2000 A with CHIP TOOL
SMD DESOLDERING PINCETTE 40
MICRO-CON 60 iA with SMD DESOLDERING PINCETTE 40
all i-CON stations with CHIP TOOL
REWORK 80
SMD 8000
0452FDLF040
0452FDLF075
0452EDLF060
0422ED

4 mm, for e. g. SO 8 GT/14 GT/16GT

0452FDLF175
0452FDLF100 6 mm, for e. g. SOIC 8 6 mm, for e. g. SOIC 8 7.5 mm, for e. g. SOIC 2 / SOT 23
0452FDLF150
0452FDLF125

10 mm, for e. g. SOIC 16 12.5 mm, for e. g. SOIC 20 15 mm, for e. g. SOIC 24 17.5 mm, for e. g. SOIC 28

0452FDLF200 0452FDLF250 0452FDLF275 0452FDLF400

27.5 mm, for components of 40 mm, for components of
20 mm, for e. g. SOIC 32 25 mm, for e. g. SOIC 40 27.5 mm side length 40 mm side length

0452QDLF100 0452QDLF125 0452QDLF150 0452QDLF175

90°, length 10 mm, 90°, length 12.5 mm, 90°, length 15 mm, for 90°, length
for e. g. PLCC 20 for e. g. PLCC 28 e. g. QFP, TQFP and TTQFP 80T25 17.5 mm, for e. g. PLCC 44

0452QDLF200 0452QDLF250 0452RDLF150 0452RDLF225

90°, length 20 mm, 90°, length 25 mm, length 15 x 12.5 mm, length 22.5 x 16.5 mm,
for e. g. PLCC 52 for e. g. PLCC 68 for e. g. PLCC 32 for e. g. QFP 100
* Please note:
0422MD 0452MDLF020 0422SD
Tips 0422SD must be used in
combination with the tip turn pro-
tection set to ensure good results.
Tip turn protection set for TC 40
ellipse, ellipse, desoldering tweezers and DESOL-
for MELF and MINI-MELF for MELF and MINI-MELF for MICRO-MELF DERING PINCETTE 40 on request.

Hot-air nozzle series 472

i-CON VARIO 2 i-CON VARIO 4
with i-TOOL AIR S hot-air iron with i-TOOL AIR S hot-air iron

0472AR 0472BR 0472CR 0472DR 0472ER
17,5 Ø 9,9 20,5 Ø 9,9

Ø 6
Ø 2
Ø 4
Ø 1,7 Ø 3,5
hot-air nozzle, 2 mm ø hot-air nozzle, 4 mm ø hot-air nozzle, 6 mm ø hot-air nozzle, bent, 1.7 mm / 0.067 in ø hot-air nozzle, bent, 3.5 mm / 0.138 in ø
