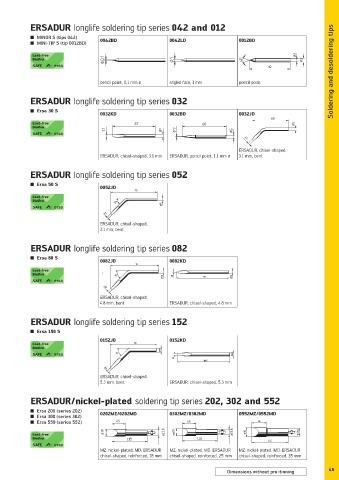

ERSADUR longlife soldering tip series 042 and 012
Soldering and desoldering tips
MINOR S (tips 042) 0042BD 0042LD 0012BD
MINI-TIP S (tip 0012BD)

pencil point, 0.1 mm ø angled face, 1 mm pencil point

ERSADUR longlife soldering tip series 032

Ersa 30 S 0032KD 0032BD 0032JD

ERSADUR, chisel-shaped,
ERSADUR, chisel-shaped, 3.1 mm ERSADUR, pencil point, 1.1 mm ø 3.1 mm, bent

ERSADUR longlife soldering tip series 052

Ersa 50 S
0052JD

ERSADUR, chisel-shaped,
3.1 mm, bent

ERSADUR longlife soldering tip series 082

Ersa 80 S
0082JD 0082KD

ERSADUR, chisel-shaped,
4.8 mm, bent ERSADUR, chisel-shaped, 4.8 mm

ERSADUR longlife soldering tip series 152

Ersa 150 S
0152JD 0152KD

ERSADUR, chisel-shaped,
5.3 mm, bent ERSADUR, chisel-shaped, 5.3 mm

ERSADUR/nickel-plated soldering tip series 202, 302 and 552

Ersa 200 (series 202) 0202MZ/0202MD 0302MZ/0302MD 0552MZ/0552MD
Ersa 300 (series 302)
Ersa 550 (series 552) 45 46
ø18 ø13,8 ø25 ø19,6
115 120
MZ: nickel-plated, MD: ERSADUR MZ: nickel-plated, MD: ERSADUR MZ: nickel-plated, MD: ERSADUR
chisel-shaped, reinforced, 18 mm chisel-shaped, reinforced, 25 mm chisel-shaped, reinforced, 35 mm

45
Dimensions without pre-tinning
