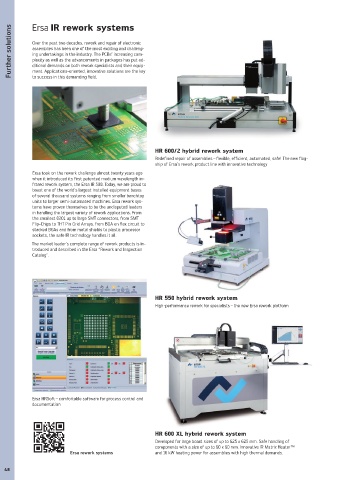

Further solutions Ersa IR rework systems

Over the past two decades, rework and repair of electronic
assemblies has been one of the most exciting and challeng-
ing undertakings in the industry. The PCBs’ increasing com-
plexity as well as the advancements in packages has put ad-
ditional demands on both rework specialists and their equip-
ment. Applications-oriented, innovative solutions are the key
to success in this demanding field.

HR 600/2 hybrid rework system
Redefined repair of assemblies – flexible, efficient, automated, safe! The new flag-
ship of Ersa’s rework product line with innovative technology
Ersa took on the rework challenge almost twenty years ago
when it introduced its first patented medium wavelength in-
frared rework system, the Ersa IR 500. Today, we are proud to
boast one of the world’s largest installed equipment bases
of several thousand systems ranging from smaller benchtop
units to larger semi-automated machines. Ersa rework sys-
tems have proven themselves to be the undisputed leaders
in handling the largest variety of rework applications. From
the smallest 0201 up to large SMT connectors, from SMT
Flip-Chips to THT Pin Grid Arrays, from BGA on flex circuit to
stacked BGAs and from metal shields to plastic processor
sockets, the safe IR technology handles it all.
The market leader’s complete range of rework products is in-
troduced and described in the Ersa “Rework and Inspection
Catalog”.

HR 550 hybrid rework system
High-performance rework for specialists – the new Ersa rework platform

Ersa HRSoft – comfortable software for process control and
documentation

HR 600 XL hybrid rework system
Developed for large board sizes of up to 625 x 625 mm. Safe handling of
components with a size of up to 60 x 60 mm. Innovative IR Matrix Heater™
Ersa rework systems and 16 kW heating power for assemblies with high thermal demands.
