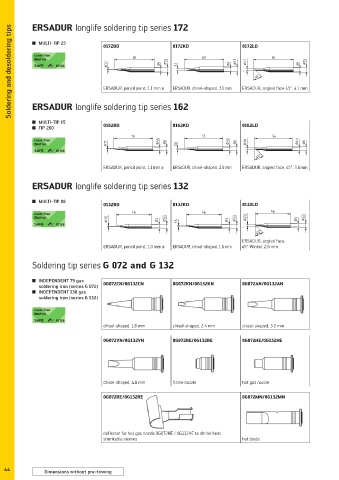

Soldering and desoldering tips ERSADUR longlife soldering tip series 172 0172LD

MULTI-TIP 25
0172KD
0172BD

ERSADUR, chisel-shaped, 3.1 mm
ERSADUR, pencil point, 1.1 mm ø
ERSADUR, angled face 45°, 4.1 mm
ERSADUR longlife soldering tip series 162

MULTI-TIP 15 0162BD 0162KD 0162LD
TIP 260

ERSADUR, pencil point, 1.1 mm ø ERSADUR, chisel-shaped, 2.6 mm ERSADUR, angled face, 45°, 3.6 mm

ERSADUR longlife soldering tip series 132

MULTI-TIP 08 0132BD 0132KD 0132LD

ERSADUR, angled face,
ERSADUR, pencil point, 1.0 mm ø ERSADUR, chisel-shaped, 1.6 mm 45° Winkel, 2.6 mm

Soldering tip series G 072 and G 132

INDEPENDENT 75 gas
soldering iron (series G 072) 0G072CN/0G132CN 0G072KN/0G132KN 0G072AN/0G132AN
INDEPENDENT 130 gas
soldering iron (series G 132)

chisel-shaped, 1.0 mm chisel-shaped, 2.4 mm chisel-shaped, 3.2 mm
0G072VN/0G132VN 0G072BE/0G132BE 0G072HE/0G132HE

chisel-shaped, 4.8 mm flame nozzle hot gas nozzle

0G072RE/0G132RE 0G072MN/0G132MN

deflector for hot gas nozzle 0G072HE / 0G132HE to shrink heat
shrinkable sleeves hot blade

44
44
Dimensions without pre-tinning
