P. 42

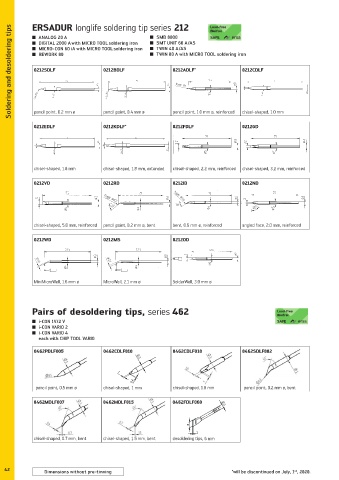

Soldering and desoldering tips  ERSADUR longlife soldering tip series 212  *     0212CDLF

                                                         SMD 8000
               ANALOG 20 A
                                                         SMT UNIT 60 A/AS

               DIGITAL 2000 A with MICRO TOOL soldering iron

                                                         TWIN 40 A/AS

               MICRO-CON 60 iA with MICRO TOOL soldering iron
                                                         TWIN 80 A with MICRO TOOL soldering iron
               REWORK 80

             0212SDLF
                                                              0212ADLF
                                     0212BDLF

             pencil point, 0.2 mm ø
                                         pencil point, 0.4 mm ø    pencil point, 1.0 mm ø, reinforced    chisel-shaped, 1.0 mm
             0212EDLF                0212KDLF *               0212FDLF                0212GD







             chisel-shaped, 1.8 mm   chisel-shaped, 1.8 mm, extended  chisel-shaped, 2.2 mm, reinforced  chisel-shaped, 3,2 mm, reinforced


             0212VD                    0212RD                 0212ID                  0212ND







             chisel-shaped, 5.0 mm, reinforced  pencil point, 0.2 mm ø, bent  bent, 0.6 mm ø, reinforced  angled face, 2.0 mm, reinforced

             0212WD                    0212MS                 0212OD







             MiniMicroWell, 1.6 mm ø  MicroWell, 2.1 mm ø     SolderWell, 3.0 mm ø




            Pairs of desoldering tips, series 462

               i-CON 1V/2 V
               i-CON VARIO 2
               i-CON VARIO 4
               each with CHIP TOOL VARIO
             0462PDLF005             0462CDLF010  Ø 3         0462CDLF018             0462SDLF002



                                          1
                                               0,4
              pencil point, 0.5 mm ø  chisel-shaped, 1 mm     chisel-shaped, 1.8 mm    pencil point, 0.2 mm ø, bent


             0462MDLF007             0462MDLF015              0462FDLF060      Ø 3



                                                                   6
                                                                      1
             chisel-shaped, 0.7 mm, bent  chisel-shaped, 1.5 mm, bent  desoldering tips, 6 mm




   42                                                                             *                     st
                 Dimensions without pre-tinning                                    will be discontinued on July, 1 , 2020.
