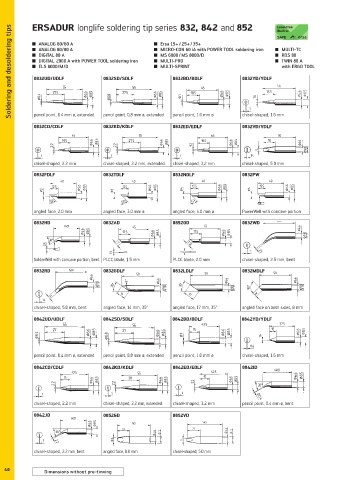

Soldering and desoldering tips ERSADUR longlife soldering tip series 832, 842 and 852 MULTI-TC

ANALOG 60/60 A
Ersa 15+ / 25+ / 35+
MICRO-CON 60 iA with POWER TOOL soldering iron
ANALOG 80/80 A
RDS 80
DIGITAL 80 A
MS 6000 / MS 8000/D
MULTI-PRO
TWIN 80 A
DIGITAL 2000 A with POWER TOOL soldering iron
ELS 8000/M/D
with ERGO TOOL
MULTI-SPRINT
0832UD/UDLF
0832BD/BDLF
0832SD/SDLF
0832YD/YDLF
pencil point, 0.4 mm ø, extended
0832KD/KDLF
0832CD/CDLF pencil point, 0,8 mm ø, extended pencil point, 1.0 mm ø chisel-shaped, 1.6 mm
0832ED/EDLF
0832VD/VDLF

chisel-shaped, 2.2 mm chisel-shaped, 2.2 mm, extended chisel-shaped, 3,2 mm chisel-shaped, 5.0 mm

0832FDLF 0832TDLF 0832NDLF 0832PW

angled face, 2.0 mm angled face, 3.0 mm ø angled face, 4.0 mm ø PowerWell with concave portion
0832HD 0832AD 0852OD 0832WD

SolderWell with concave portion, bent PLCC blade, 1.5 mm PLCC blade, 2.0 mm chisel-shaped, 2.5 mm, bent

0832RD 0832GDLF 0832LDLF 0832MDLF

chisel-shaped, 5.0 mm, bent angled face, 14 mm, 35° angled face, 17 mm, 35° angled face on both sides, 8 mm
0842UD/UDLF 0842SD/SDLF 0842BD/BDLF 0842YD/YDLF

pencil point, 0.4 mm ø, extended pencil point, 0.8 mm ø, extended pencil point, 1.0 mm ø chisel-shaped, 1,6 mm

0842CD/CDLF 0842KD/KDLF 0842ED/EDLF 0842ID

chisel-shaped, 2.2 mm chisel-shaped, 2,2 mm, extended chisel-shaped, 3.2 mm pencil point, 0.4 mm ø, bent
0842JD 0852GD 0852VD

chisel-shaped, 2.2 mm, bent angled face, 8.0 mm chisel-shaped, 5.0 mm

40
Dimensions without pre-tinning
