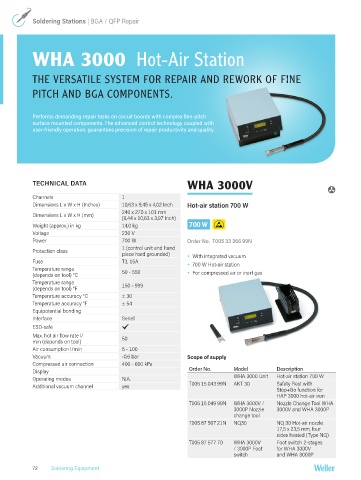

Soldering Stations | BGA / QFP Repair
WHA 3000 Hot-Air Station
THE VERSATILE SYSTEM FOR REPAIR AND REWORK OF FINE
PITCH AND BGA COMPONENTS.
Performs demanding repair tasks on circuit boards with complex fine-pitch
surface mounted components. The advanced control technology coupled with
user-friendly operation, guarantees precision of repair productivity and quality.
TECHNICAL DATA WHA 3000V
Channels 1
Dimensions L x W x H (Inches) 10,63 x 9,45 x 4,02 Inch Hot-air station 700 W
240 x 270 x 101 mm
Dimensions L x W x H (mm)
(9,44 x 10,63 x 3,97 Inch)
Weight (approx.) in kg 14,0 kg 700 W
Voltage 230 V
Power 700 W Order No. T005 33 366 99N
Protection class 1 (control unit and hand With integrated vacuum
piece hard grounded)
Fuse T3, 15A 700 W Hot-air station
Temperature range 50 - 550
(depends on tool) °C For compressed air or inert gas
Temperature range 150 - 999
(depends on tool) °F
Temperature accuracy °C ± 30
Temperature accuracy °F ± 54
Equipotential bonding
Interface Seriell
ESD-safe .
Max. hot air flow rate l/ 50
min (depends on tool)
Air consumption l/min 5 - 100
Vacuum -0,6 bar Scope of supply
Compressed air connection 400 - 600 kPa
Display Order No. Model Description
Operating modes N.A. WHA 3000 Unit Hot-air station 700 W
Additional vacuum channel yes T005 15 043 99N AKT 30 Safety Rest with
Stop+Go function for
HAP 3000 hot-air iron
T005 15 049 99N WHA 3000V / Nozzle Change Tool WHA
3000P Nozzle 3000V and WHA 3000P
change tool
T005 87 507 21N NQ30 NQ 30 Hot-air nozzle
17,5 x 23,5 mm, four
sides heated (Type NQ)
T005 87 577 70 WHA 3000V Foot switch 2-stages
/ 3000P Foot for WHA 3000V
switch and WHA 3000P
