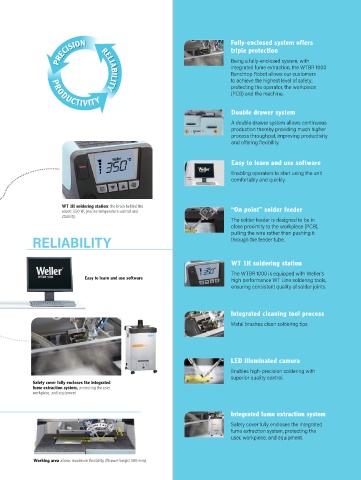

PRECISION Fully-enclosed system offers
triple protection
Being a fully-enclosed system, with
integrated fume extraction, the WTBR 1000
Benchtop Robot allows our customers
to achieve the highest level of safety:
protecting the operator, the workpiece
(PCB) and the machine.
PRODUCTIVITY
RELIABILITY

Double drawer system
A double drawer system allows continuous
production thereby providing much higher
process throughput, improving productivity
and offering flexibility.

Easy to learn and use software
Enabling operators to start using the unit
comfortably and quickly.

WT 1H soldering station: the brain behind the
robot: 150 W, precise temperature control and “On point” solder feeder
stability.
The solder feeder is designed to be in
close proximity to the workpiece (PCB),
pulling the wire rather than pushing it
RELIABILITY through the feeder tube.

WT 1H soldering station

The WTBR 1000 is equipped with Weller‘s
Easy to learn and use software high performance WT Line soldering tools,
ensuring consistent quality of solder joints.

Integrated cleaning tool process
Metal brushes clean soldering tips

LED illuminated camera
Enables high-precision soldering with
superior quality control.
Safety cover fully encloses the integrated
fume extraction system, protecting the user,
workpiece, and equipment

Integrated fume extraction system

Safety cover fully encloses the integrated
fume extraction system, protecting the
user, workpiece, and equipment.
220 mm
400 mm

Working area allows maximum flexibility (Drawer height 100 mm)
